Kasperwing
Kasperwing 1-80
ultralight, ultra lite aircraft, amateur built, experimental,
homebuilt aircraft.
|
|

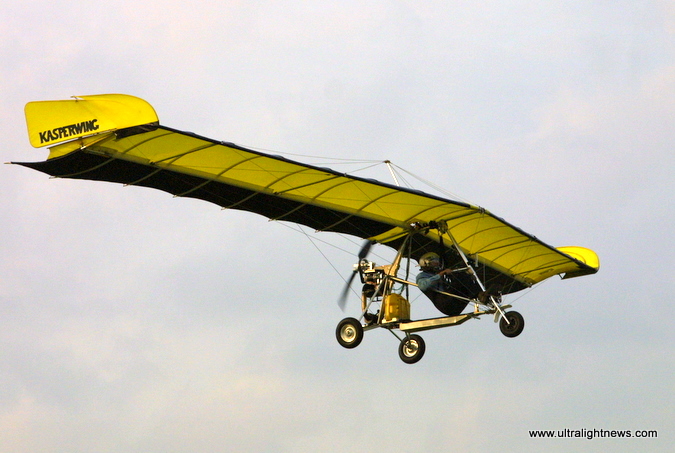

Single-seat,
single-engine, high-wing monoplane with hybrid control. Wing has
swept back leading and trailing edges, and constant chord; no tail.
Pitch control by weight-shift; yaw/roll control
by tip rudders; control inputs through tiller for yaw.
Wing braced from above by kingpost and cables,
from below by cables; wing profile by W. Kasper; single-surface.
Undercarriage has three wheels in tricycle formation; no suspension on any wheels. Push-right to-left nosewheel steering independent from yaw control.
|
|
Aluminium-tube framework with optional pod. Engine mounted
below wing driving pusher propeller. Dacron used for covering wing
and underside of mid-chord spar.
The Kasperwing 1-80 was designed
by W. Kasper in collaboration with Steve Grossruck and the prototype
constructed in 1976.
The Kasper effect allows the 1-80 to make
vertical approach to landing while remaining stable in all three
axes during a descent at 160ft/min. with a 154 lb. pilot. It has a
twin spar wing, each wing having six ribs folded into a flattened
'S' shape to give a stable profile.
The Kasper can be summarized as twin rudders
carried on tripod struts at the extremity of each wing in such a way
that the rudders are also used as vortex generators and as air
brakes.
|
|
Kasperwing Kasperwing 1-80
ultralight, ultra lite aircraft, amateur built, experimental,
homebuilt aircraft.
|
|
Empty Weight: |
160 lbs. |
|
Gross Weight: |
380 lbs. |
|
|
Wing Span: |
35 ft. |
|
Wing Area: |
180 sq. ft. |
|
Engine:
|
Cayuna/Zenoah |
|
Cruise Speed: |
35 mph. |
|
Stall Speed: |
Stall resistant |
|
VNE: |
60 mph. |
|
Construction: |
alum/tube/dacron |
|
Building time: |
50 hrs. |
|
Original Builder
Cascade Ultralites |
|
|
 |
|
