Clipper
ultralight, Clipper single place ultra lite aircraft,
Sunrise Clipper amateur built, experimental,
homebuilt aircraft.
|
|
Sunrise Aircrafts

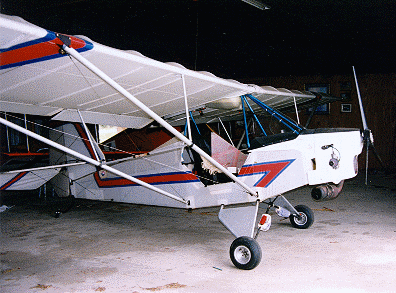

Clipper ultralight is a singer seat parasol,
streamlined strut
braced, high wing taildragger aircraft, in a tractor configuration.
The Clipper uses a 4130 chromoly welded steel fuselage with double surfaced
wings covered in dacron sailcloth. |
The Clipper has a bungee cord style landing gear on the two main
wheels and tail wheel.
Controls on the Clipper are standard three axis stick and
rudder control with a center stick and left hand throttle.
The Clipper can be powered by a twin cylinder Rotax
447 or Rotax 503, a turbo VW, or and
HKS 60 HP twin cylinder 4 stroke engine.
Cruise is 55/60 mph, VNE 100
mph, stall 25 mph, climb rate 600 feet per minute. |
|
Clipper ultralight aircraft specifications. |
|
Wing Span |
30 ft. 6" |
|
Wing Area |
152 sq. ft. |
|
Length |
15 ft. 10" |
|
Max Gross Wt |
580 lbs. |
|
Empty Wt |
252 lbs. |
|
Fuel Capacity |
5 gal. |
|
Seats |
1 |
|
|
|
Clipper ultralight aircraft
performance specifications. |
|
Engine |
Rotax 447, 503, HKS, Turbo VW |
|
Range |
90 sm. |
|
Takeoff Dist |
150 ft. |
|
Landing Dist |
200 ft. |
|
VNE |
100 mph. |
|
Cruise |
60 mph. |
|
Climb Rate |
800 fpm. |
|
Stall |
25 mph. |
|
Construction
|
Est. Bldg. Time 75 hrs. |
|
|
 |
|
|
 |
|
 |
|
 |
|
 |
|
 |
|
 |
|
 |
|
 |
|
|
|
|
|
|
|
|
