Chinook WT
II
ultralight, ultra lite aircraft, amateur built, experimental,
homebuilt aircraft.
|
|
The Birdman Enterprises Chinook WT 11 is a single
seat ultralight, with an enclosed cockpit, in a pusher
configuration. It uses bolt and rivet together aluminum tube
construction covered in dacron sailcloth.
The Chinook WT II is a
tail dragger. The Chinook WT II is a pusher, the control system uses
a center mounted stick with a left hand throttle. It has
a wing warping system rather than ailerons for roll control. It has a steerable tail wheel and features a bungee
cord suspension system on the main wheels.
Power on the original design was a Rotax 277 with a
belt drive, later models were supplied with the 377/447 Rotax
engines using a 2.58 to 1 reduction drive.
According to industry sources there were about 700
of the single place Chinook WT 11 aircraft built.
|
|
|
Empty Weight: |
230 lbs. |
|
|
Gross Weight: |
525 lbs. |
|
Wing Span: |
35 ft. |
|
Wing Area: |
140 sq.ft |
|
Engine:
|
Rotax 277 |
|
Cruise Speed: |
45 .mph |
|
Stall Speed: |
20 .mph |
|
VNE: |
65 .mph |
|
Construction: |
Aluminum tube, bolt, rivet, dacron sail cloth |
|
Building time: |
300 hrs. |
|
Original Manufacturer
Birdman Enterprises |
|
|
 |
 |
 |
 |
|

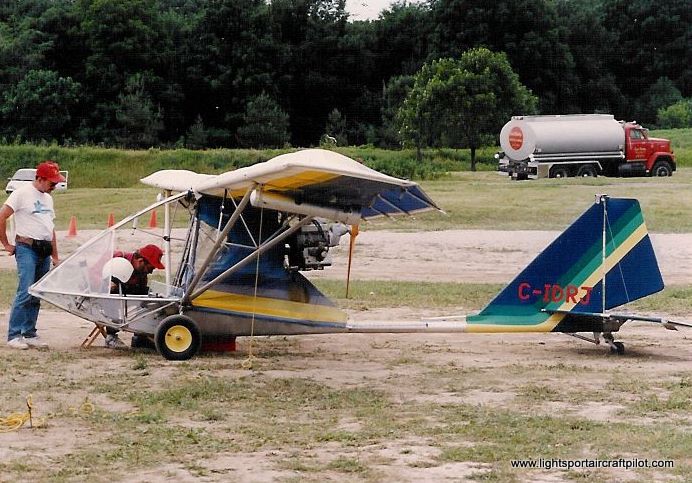

Chinook WT II - A |

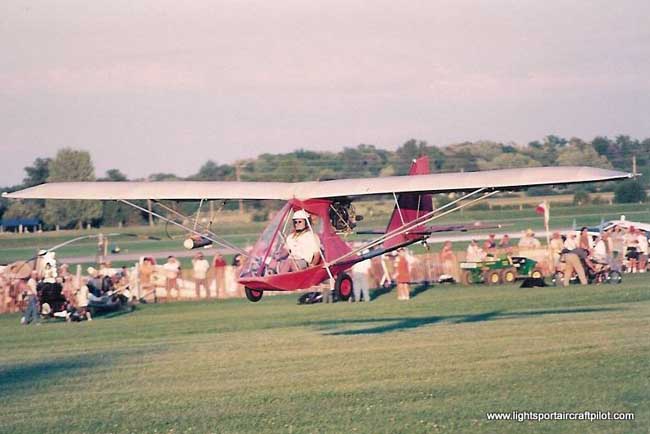

Chinook WT II - B |

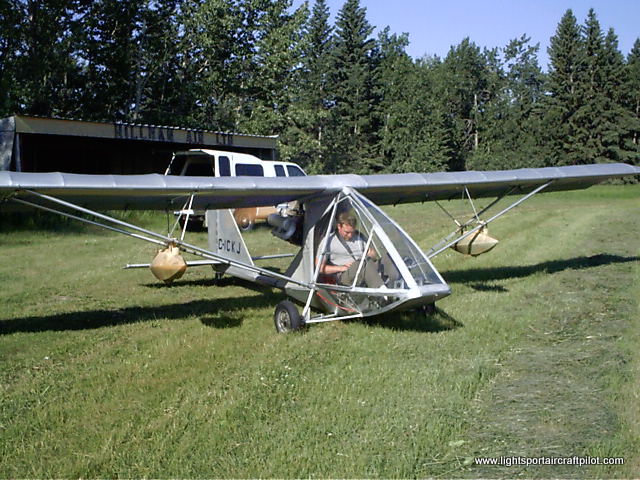

Chinook WT II - C |
|
|
|
 |
|
 |
|
 |
|
 |
|
 |
|
 |
 |
 |
 |
|
|
|
|
|
|
