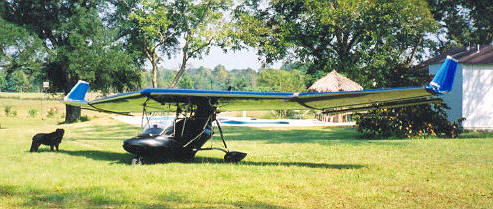

Mitchell Wing T 10D two place motor glider

The Mitchell Wing T-10, first introduced in 1991 is a side by side seating two place in a pusher configuration. The aircraft uses aluminum tube bolt and rivet together construction. The wings are all aluminum covered. Building times are reported to be in the 250 hour range. The craft is a trigear. Its roots can be traced back to the early days of ultralight aviation and is one of the truce ultralight motor gliders.

Empty Weight: 400 lbs.
Gross Weight: 835 lbs.
Wing Span: 37 ft. 4 in.
Wing Area: 170 sq. ft.
Engine: 503 Rotax
Cruise Speed: 60 m.p.h.
Stall Speed: 35 m.p.h.
VNE: 80 m.p.h.
Construction: Aluminum Tube/Aluminum Wings

For more information contact,

A T.U.F. VIEW
When powered by the 503 Rotax engine the T-10 climbs at 500 feet per minute at gross. Cruise is 60 m.p.h. stall comes in at around 35. The craft traces its design heritage to the Mitchell Wing single seat in the A-10 and B-10 models.

It is a craft that really needs a paved runway and a 1500 foot strip clear at both ends to get in and out of comfortably. It is also a plane that takes a little getting use to, it is very pitch sensitive, and gliders well in ground effect.

Building times as reported by the factory and actual builders seem a little low. The craft does have folding wings. The factory location is also a little unique in that it is an abandoned missile silo.

The Ultralight Flyer rates

Factory......................................... 7.0
The Mitchell T-10............................6.5

Wingspan 37'4"
Empty Weight
400 lbs
Gross Weight
835 lbs
Wing Area
170 sq. ft.
Wing Loading
4.9 lbs/sq.ft.
Power Loading
18.2 lbs./hp
Stressed
5g's + 4.5 G's
Engine
Zenoah G50B Power 45 hp
Cruising Speed
60 mph
Top Speed
75 mph
VNE
80 mph
Stall Speed
32 mph
Rate of Climb
650 fpm
Glide Ratio
14:1 Min. Sink 260 ft/min.
Service Ceiling
12,000 ft
Take Off roll
190 ft
Fuel Usage
2.3 gal./hr *
Kit Assembly Time
100-150 hrs
How many Mitchell Wings have been built?
  • Over 400 built and flown over the past 12 years.

Has the Mitchell Wing received any rewards?

  • Winning: Longest distance on limited fuel.
  • Winning: Non Stop Distance
  • Winning: Worthington Cup

What is the wing made of & why is it so important?

  • The Michell Wing is an Aluminum Clad Wing, fully cantilevered with no struts or wire braces.

Can the Mitchell Wing be trailered?

  • Ten minutes from custom trailer to sky.



Mitchell Wing, Mitchell Wing T 10D two place motor glider, Ameriplanes Truro, IA.

AmeriPlanes
Larry Smith
P.O. Box 98
Truro, IA 50257
641-765-4555 Voice &
515-250-4200 Cell
