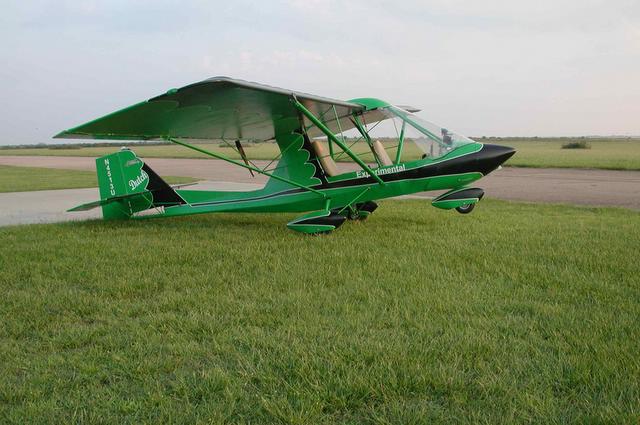

Excalibur ultralight aircraft,
|
Hegar style
wheels, streamlined aluminum struts, military type seat belts and
shoulder harnesses. Power is supplied by a ROTAX 503 air cooled 52HP
engine in an upright engine installation, and comes with shock cord
landing gear, fiberglass nosecone, and a clear or tinted windshield.
Only AN or Military spec hardware are used. Lightweight 1.8oz
SUPERFLITE fabric is extremely popular, durable and easy to apply to
the airframe, wings, and tail sections.
A video tape showing how to install the and paint the fabric is
supplied with the kit.
EXCALIBUR has extremely responsive three axis controls, and is well
suited for short field take-offs and landings. The Excalibur is also
capable of soaring.
|
Excalibur Specifications
|
Excalibur Performance
|
- Wingspan 31 ft. 6 in.
- Chord 60"
- Length 20 ft. 0 in.
- Height 6 ft. 0 in.
- Wing area 185 sq.ft.
- Standard Engine: Rotax 503 (52HP) air
cooled
- Empty weight 450 lbs.
- Useful load 500 lbs.
- Ultimate load factor +6 -4
- Build time 100-200 hours
- Field assembly time 20 min.
- Airframe Aluminum tube (6061-T6,
2024-T3)
- Steel, 4130 Chromoly, Stainless Steel pop
rivets,
- AN/Mil Spec. hardware.
- Standard Covering: SUPERFLITE, FAA
approved fabric.
|
- VNE100 mph
- Top level speed 90mph
- Cruise speed 50-80 mph
- Stall speed 30-35 mph
- Climb rate 1200 fpm solo, 700 ft.
dual
- Take off roll 96 ft.solo, 196 ft.
dual
- Glide ratio 11:1 solo, 9:1 dual
- Service ceiling 14,000 solo, 12,500
dual
- Fuel used at cruise 2.3 gph to 4
gph
- Fuel capacity 10 gal. (U.S.)
- All data is based on average weight
pilots, 170 lbs, and average sea level condition
|
|
Excalibur Aircraft
6439 Tractor Road
Sebring, Fla. 33872
Tel. 863-385-9486 |
|
