Single place Part 103 ultralights in the United States are defined as single
place ultralight aircraft that weigh 254 lbs or less, have a stall speed
not more than 24 knots, a top
speed of 55 knots, and carry no more than 5 gallons of fuel. To fly a
legal Part 103
ultralight aircraft in the United States the pilot does not require a
pilot license.
Single place aircraft weighing more than 254 lbs. in the U.S. require a
pilots license and must be built as experimental, amateur built,
homebuilt aircraft. These include weight shift aircraft, more commonly
known as trikes, powered parachutes, and powered para-gliders.
Single place ultralights in Canada can weigh up to 1200 lbs. and an
ultralight pilots license is required to fly them.
|
|
|
|
|
|
|
|
Johnston Tiger Cub pictures and
specifications, images of the
Johnston Tiger Cub amateur built experimental homebuilt aircraft
specifications and data.
|
|
 |
Johnston Tiger Cub pictures, images
and specifications for the
Johnston Tiger Cub
amateur built experimental homebuilt aircraft.
|
|
|
Tiger Cub UL Specs
| Specs. with
|
447 Rotax
engine |
503 Rotax
engine |
| Horsepower
|
40 SC CDI
|
52 DC DCDI
|
| No. of
cylinders |
2 |
2 |
| Redrive
|
Gearbox (2.58
to 1) |
Gearbox (2.58
to 1) |
| Empty / gross
weight |
275 / 600 lb.
|
320 / 650 lb.
|
| Wing span
|
29 ' 4"
|
29 ' 4"
|
| Wing area
|
130 sq. ft.
|
130 sq. ft.
|
| Fuselage
length (nose to tail). |
19' 11"
|
19' 11"
|
| Folded length
|
22' 8"
|
22' 8"
|
| Folded width
|
6' 6" (width
of main gear) |
6' 6" (width
of main gear) |
| Stall full
flapps. |
25 mph.
|
27 mph.
|
| Cruise
|
65 mph.
|
75 mph.
|
| Climb
|
800 fpm.
|
1000 fpm.
|
| Glide Ratio
|
8 to 1
|
8 to 1
|
| Take off Roll
|
150'
|
75'
|
| Landing Roll
|
300'
|
300'
|
| Wing Loading
|
4.6 lbs. per
sq. ft.@ gross. |
5.0 lbs. per
sq. ft.@ gross. |
| Power Loading
|
15 lbs. per
hp. @ gross. |
12.5 lbs. per
hp. @ gross. |
| Stress Loading
|
6+ 4- G's.
|
6+ 4- G's.
|
| VNE
|
90 mph.
|
90 mph.
|
|

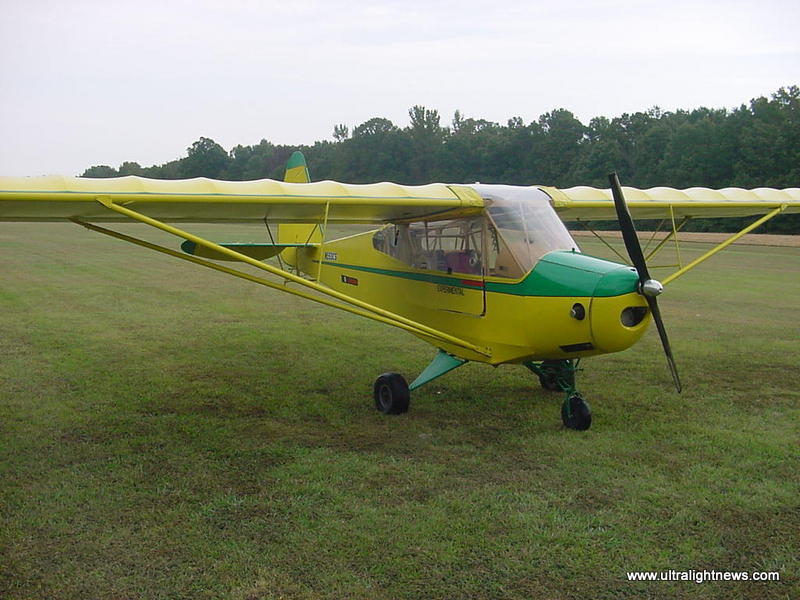

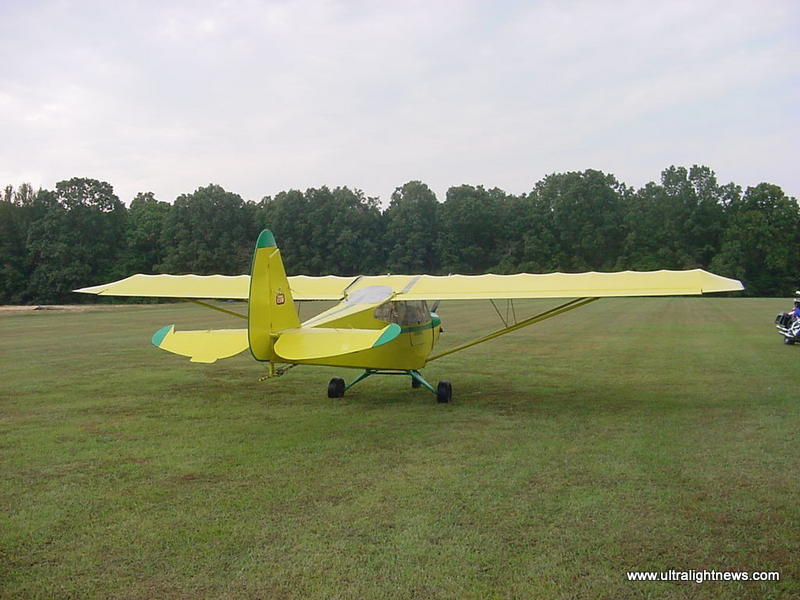

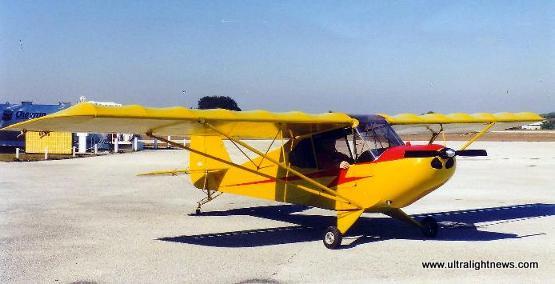

Johnston Tiger Cub
Experimental Aircraft |
Johnston Tiger Cub
Experimental Homebuilt Aircraft |
|
|
|
|
