Preceptor Ultra Pup
experimental aircraft pictures, Preceptor Ultra Pup amateur built aircraft
specifications, Preceptor Ultra Pup homebuilt aircraft specifications and photographs,
Ultralight News newsmagazine.
|
Single place Part 103 ultralights in the United States are defined as single
place ultralight aircraft that weigh 254 lbs or less, have a stall speed
not more than 24 knots, a top
speed of 55 knots, and carry no more than 5 gallons of fuel. To fly a
legal Part 103
ultralight aircraft in the United States the pilot does not require a
pilot license.
Single place aircraft weighing more than 254 lbs. in the U.S. require a
pilots license and must be built as experimental, amateur built,
homebuilt aircraft. These include weight shift aircraft, more commonly
known as trikes, powered parachutes, and powered para-gliders.
Single place ultralights in Canada can weigh up to 1200 lbs. and an
ultralight pilots license is required to fly them.
|
|
|
|
|
|
|
|
Preceptor Ultra Pup pictures and
specifications, images of the
Preceptor Ultra Pup amateur built experimental homebuilt aircraft
specifications and data.
|
 |
Preceptor Ultra Pup pictures, images
and specifications for the
Preceptor Ultra Pup
amateur built experimental homebuilt aircraft.
|
|
|
Preceptor N 3 Pup Performance Specifications
|
| Horsepower: |
40 hp |
| Fuel Capacity: |
14 gal |
53 L |
| Range: |
521 nm |
965 km |
600 mi |
| Cruise: |
78 kts |
144 kmh |
90 mph |
| Stall: |
30 kts |
56 kmh |
35 mph |
| Climb: |
1,400 ft/min |
7.1 m/sec |
| Ceiling: |
10,000 ft |
3,048 m |
| Takeoff Distance: |
300 ft |
91 m |
| Landing Distance: |
300 ft |
91 m |
Preceptor N 3 Pup Specifications
|
| Gross Weight: |
1,000 lbs |
454 kg |
| Empty Weight: |
450 lbs |
204 kg |
| Useful Load: |
550 lbs |
249 kg |
| Wingspan: |
30.5 ft |
9.3 m |
|
| Length: |
17.3 ft |
5.27 m |
| Height: |
5.5 ft |
1.68 m |
|
Preceptor Ultra Pup
Experimental Aircraft |
Preceptor Ultra Pup
Experimental Homebuilt Aircraft |
|
|
|
|

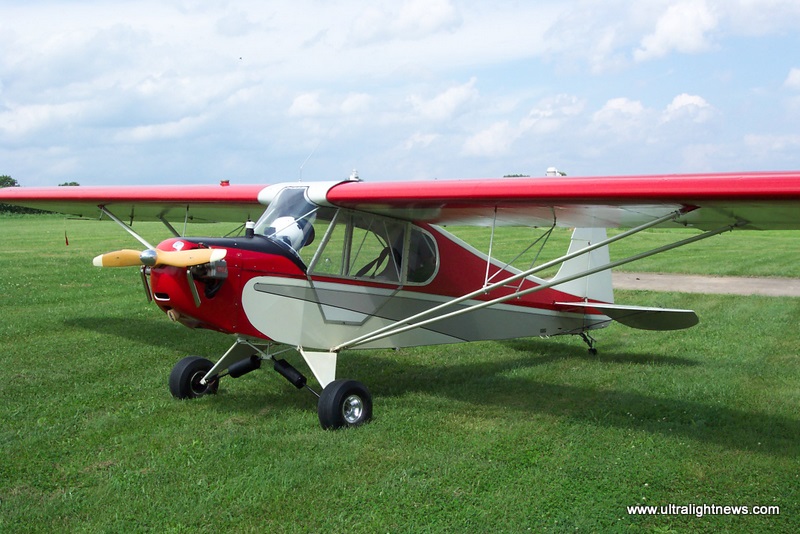

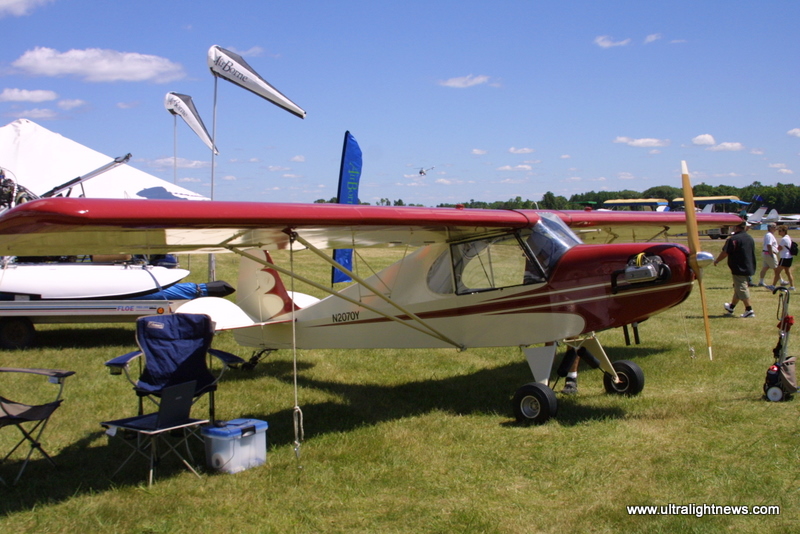

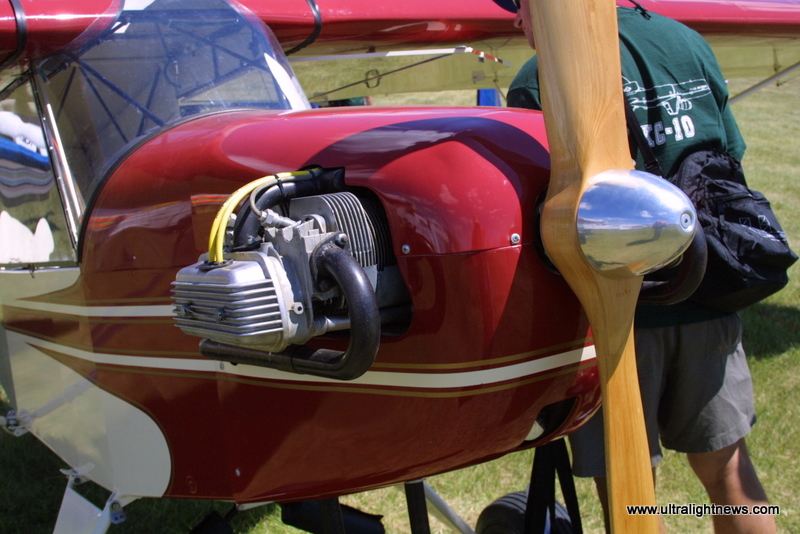

To view the
pictures, images of the Preceptor Ultra Pup click on the smaller
images and they will enlarge. To return to the index page for the Preceptor Ultra Pup click on Preceptor Ultra Pup Index link, to view
video of the Preceptor Ultra Pup click on the Video link, to
return to the Main Index click on the UltralightNews link. |
|
|
|
|
|
|
|
