Fisher FP 505 Skeeter Performance Specifications

Horsepower: 28 hp
Fuel Capacity: 5 gal 19 L
Range: 156 nm 289 km 180 mi
Cruise: 48 kts 89 kmh 55 mph
Stall: 22 kts 41 kmh 25 mph
Climb: 750 ft/min 3.8 m/sec
Ceiling: 13,000 ft 3,962 m
Takeoff Distance: 150 ft 46 m
Landing Distance: 150 ft 46 m

Fisher FP 505 Skeeter Specifications


Gross Weight: 500 lbs 227 kg
Empty Weight: 245 lbs 111 kg
Useful Load: 255 lbs 116 kg
Wingspan: 28 ft 8.53 m
Length: 16.5 ft 5.03 m
Height: 5.8 ft 1.77 m

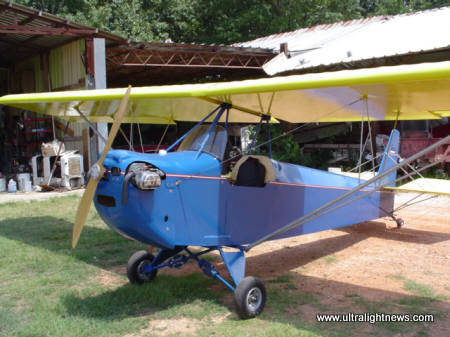

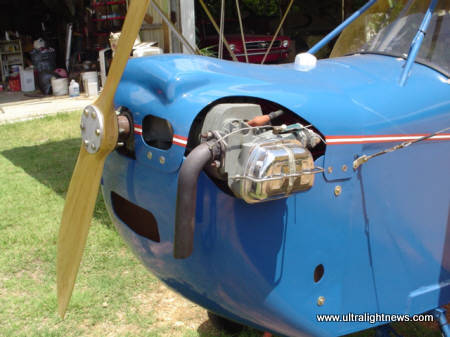

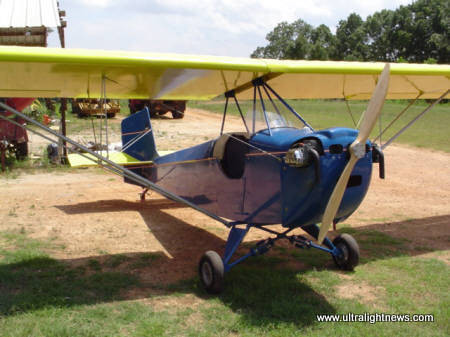

Fisher FP505 Experimental Aircraft

Fisher FP505 Experimental Homebuilt Aircraft

To view the pictures, images of the  Fisher FP505 click on the smaller images and they will enlarge. To return to the index page for the Fisher FP505 click on  Fisher FP505 Index link, to view video of the Fisher FP505 click on the Video link, to return to the Main Index click on the UltralightNews link.
