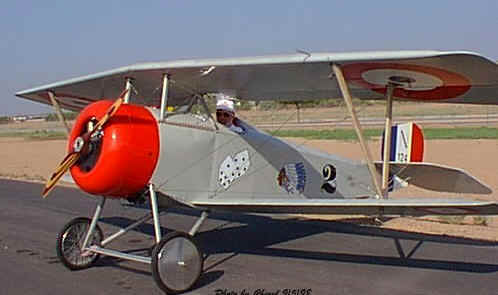

Plans for the Nieuport 11 ultralight and light sport aircraft plans.

Designed and prototyped in the spring of 1984, the 7/8 scale Nie. 11 went through a hurried 10 hours of serious test flying before being loaded on a trailer for the trip to Oshkosh. Flight testing included the usual stuff, while I was watching, (and some “unauthorized” activities when I was not.)

Loops, spins, Split S and a 7000ft power dive were performed on C-IRCA (do not try this at home folks! Aerobatics NOT recommended! )

The 11 can be built with lightweight TUFF wheels and a Rotax 447 in the US Ultralight category. As a registered homebuilt, (or UL in Canada) it can be built in a range of variants including the Ni 17/24/27 and Siemens Shuckert D1. * Recommended powerplants include the Rotax 503, 447, or VW.

Construction: The structure is 6061 tube with pull riveted gussets and bolts. Wings and fuselage are fabric covered. Plans are designed for the first time builder with basic tools.

Nieuport 11
Wing Span ................... 21.50 ft.  Range ............................ 165 sm
Wing Area ................ 114.0 sq. ft. Takeoff Dist . .................. 160 ft.
Length .................... 16.50 ft,  Landing Dist . ................ 275 ft.
Max Gross Wt . ............ 550 lbs.  VNE .............................. 83 mph
Empty Wt . .................... 250 lbs. Cruise ................................. 65 mph
Payload (full fuel) ....... 200 lbs.  Stall ............. 27 mph
Fuel Capacity .............. 12 gal.  Climb Rate @msl .......... 750 fpm
Seats ............................1  Service Ceiling ............. 15,000 ft.
Cabin Width ................ 24 in.
Engine   30-50 hp  Construction Aluminum Tubing
  Est. Bldg. Time  700 hrs. I
Circa Reproductions Inc.
PO Box 89107
Calgary, Alberta, T2Z 3W3
(403)620-7240
