Rotax points ignition timing

Older Rotax Bosch points ignition aircraft engines require periodic maintenance and timing service to maintain their reliability.

The following are steps and procedures that can be used to check and adjust the ignition timing, and other service related items on the Rotax series of two stroke points equipped aircraft engines.

Ignition timing - disassembly
Points and condenser replacement
Ignition timing reassembly
Recoil - disassembly/reassembly
Carburetor - disassembly/reassembly

Ignition Timing - Fan cover and recoil removal

Tools required
Flat screw driver
Flat screw driver

To remove the fan cover, carefully pluck the three retaining clips from the holes holding them into the fan tower. Then gently pull outward on the cover, until it is off.

Recoil removal

Tools required
ratchet
ratchet

10 mm deep reach socket

Before removing the recoil, unplug the ignition suppressor box (note color of connecting wires) by gently pulling on the two wires at their connectors.
Remove the 4, 10 mm socket head bolts and washers that retain the recoil to the fan tower housing. The recoil will now come free.

Inspection:
-Inspect the recoil housing for cracking around the center and where the recoil rope exits the housing.
-Inspect for proper recoil return spring action
-Inspect the recoil rope for fraying.
-Inspect ignition suppressor box at attachment points for cracking.

Ignition timing - Fanbelt, fan, starter pulley removal

Tools required
6 mm allen wrench
locking pin
plastic mallet
6 mm allen wrench
locking pin
plastic mallet

Procedure

Located behind the recoil starter assembly is the starter pulley and fan pulley.To remove these lock the crankshaft by placing the locking pin (supplied with the Rotax engine tool kit), into the fuel pump impulse hole. Then slowly turn the engine over until it locks.

With the crankshaft locked use a 6mm allen wrench to remove the 3, retaining bolts. This allows the removal of the recoil cup and fan pulley.Once the cup and fan pulley have been removed rotate the fan belt in the fan blades until it is off.

Inspection:
-Inspect the starter pulley cup for signs of wear or damage.
-Inspect the fan pulley for signs of wear or damage.
-Inspect the fan belt for signs of wear or cracking.
-Inspect retaining bolts and washers for damage.

Ignition timing - Magneto removal

Tools required
Magneto puller
30mm socket
3 bolts, proper length
Magneto puller
30mm socket
3 bolts, proper length

Procedure

Install the bottom half of the Rotax magneto puller using the 3, bolts. To align the holes in the puller correctly, rotate the crankshaft. Make sure the bolts are the proper length if they are too long they can do damage to internal parts, too short and they will strip the threads from the hole. Position the puller so that the puller extension locks into the top of the fan tower on the intake manifold side, as per fig F - 08 b. Before tightening the bolts install the 30mm socket into the inside of the puller to properly align it. With the socket in place, the bolts snug, use a ratchet or Johnson bar to remove the magneto nut and washer.

Ignition timing - Magneto removal

Now install the internal puller, TIGHTEN IT FULLY, then using a wrench screw the puller bolt in until the magneto breaks free. Then by hand pull the magneto clear of the crankshaft and engine.

Inspection:
-Inspect the key way area for signs of wear.
-Inspect the interior of the magneto for foreign material.
-Inspect the crankshaft end for signs of wear.
-Inspect lockwasher and nut for signs of damage.

Ignition timing

Tools required:
Flat blade screw driver
Dial indicator
Buzz box or continuity light
Feeler gauges
Business card
4mm Allen wrench
Flat blade screw driver
Dial indicator
Buzz box or continuity light
Feeler gauges
Business card
4mm Allen wrench

Parts required:
grease for phenolic block assembly

Procedure

Before installing the fan tower it is first easier to do the ignition timing. To check the timing, place your dial indicator into the spark plug hole in the magneto cylinder. Connect your buzz box to ground and to the magneto side coil wire. This is the blue on black wire. Turning the engine over clockwise to bring the piston to top dead center. Zero the dial indicator. Turn the buzz box on. Now turn the engine counter clockwise. The buzz box should indicate the ignition is firing at .086 before top dead center.

Ignition timing

Repeat for the PTO cylinder using the blue on red wire.
If the timing is not coming in at .086 BTDC, center the stator plate on the two retaining screws. Gap the points at .015 Install the dial indicator in the magneto cylinder spark plug hole . Turn the engine over clockwise until the magneto piston is at top dead center. Zero the dial indicator. Connect the buzz box to the blue on black wire. Turn the engine counter clockwise and note the firing position.If the engine is firing too early move the stator plate clockwise.If the engine is firing too late move the stator plate counterclockwise.

To time the PTO side cylinder insert the dial indicator in PTO spark plug hole. Turn the engine over clockwise and bring the PTO piston up to TDC. Zero the gauge. Hook up the buzz box to the blue /red wires. Turn the engine over counter clockwise and note the firing position. It should be .086 BTDC.If the points are firing too early decrease the point gap on the PTO set of points. If the points are firing too late increase the point gap on the PTO side points.

Points and condenser replacement-Stator unit removal

Tools required
4 mm allen wrench
4 mm allen wrench

Procedure

For points and condenser replacement it is suggested that you remove the lower coil by removing the three retaining bolts, disconnect the wiring from the top of the both coils, disconnect the ground wire, remove the rubber grommet where the wiring enters the crankcase halves. Now remove the two allen screws, washers, and lock washers holding the stator plate to the crankcase halves. The stator unit will now come free. Slowly pull the stator plate out while carefully pulling the wiring harness through the crankcase hole. Once the wires are free, the stator unit can be completely removed from the engine.

Inspection:
-Inspect stator unit for signs of wear or damage.
-Inspect points and condensers for signs of oil contamination.
-Inspect points for signs of wear.
-Inspect the coils for damage.
-Inspect the wiring for wear, cuts or pinching.

Points replacement

Tools required
Vice
6mm wrench
Pliers
Screw driver
Hammer

With the stator unit completely detached from the engine it is now possible to remove the points and condensers.

Points removal

For points removal, disconnect the points wire from the top of the condenser. Then with a blade screw driver remove the screw and lockwasher retaining the points to the stator unit. The points should now come free.

Repeat for the other side.

Points installation

Reinstall points in reverse order, ensuring wiring is routed correctly.Repeat for the other side.

Condenser removal

To remove the condensers, remove nut and lock washer from top of condenser, remove the points and ignition wires. Remove the insulating cap. Turn the stator plate upside down on the bench so that the condensers are facing down. Support the plate so that it rests above the bench. Place a small socket onto the bottom of the condenser, and with a hammer, gently tap. The condenser will now come out.

Condenser Installation

For condenser installation place the stator unit sideways in a vice. Place a new condenser into the condenser hole in the stator unit. Run a bead of Loctite 242 around condenser where it meets stator plate. Place a socket the same size as the outside of the condenser on to the top of the condenser. Close the vice down on the socket, pressing the condenser into the hole. Make sure the socket is straight. Stop when the bottom of the condenser is flush with the bottom of the stator unit.

Repeat for the other side.

Install the insulator caps, wires, washers and nuts.

Ignition timing- Magneto installation

Tools required
Puller ring 876 080 (1)
Bolts 940 581 (2)
Torque wrench
30 mm socket
Puller ring 876 080 (1)
Bolts 940 581 (2)
Torque wrench
30 mm socket

Shop supplies
Loctite 242
Loctite 242

Procedure

Before installing the magneto, check to make sure that the screws holding the stator unit, points and coils are tight and that no wires have been pinched or cut during installation.

Carefully place the magneto onto the crankshaft magneto end, aligning the magneto key way cut up with the crankshaft key . Install the lock washer onto the crankshaft, with the locking points facing toward the nut. Install the nut. Install the outer half of your magneto puller, (A) locking the extension arm (B) into the fan tower. Make sure to use the proper length bolts! Before tightening down the bolts, install your 30 mm socket onto the magneto nut. This will centre the puller. Snug up the bolts using the 30 mm socket and a ft. lb torque wrench and torque the magneto nut to 65 foot lbs.

Ignition timing - Fan pulley, recoil cup, fan belt installation

Tools required :
6 mm allen wrench
Torque wrench
Crankshaft locking pin
6 mm allen wrench
Torque wrench
Crankshaft locking pin

Procedure

Prior to installing the fan pulley install the fan belt. Fit the belt through one blade of the fan and rotate it until it is installed in the fan tower. Position the belt into the lower fan pulley and then pull it down and into position on the magneto. Align the three holes. Install the recoil cup. Install the three allen head bolts and lock washers.Install the locking pin into the impulse hole and lock the crank. Torque the 3, allen bolts in two stages to 195 inch lbs.Remove the locking pin.

Check the belt tension.

Ignition timing -Fan belt adjustment

Reinstall the fan. After fan adjustment replace excess as per update. install lock washer and install nut. Lock fan using fan fixation tool. Snug up nut. Remove fan fixation tool. Spin engine over several revolutions, Install fan fixation tool and torque nut to 45 ft lbs.

Ignition timing Recoil and wiring installation

Reconnect the ignition suppressor box, then install the recoil, using the 4 , 10mm socket held bolts and washers.

Remember to check for correct recoil rope positioning.

Install the fan protector, making sure that none of the wiring is disconnected during installation.

Fan belt adjustment

Tools required
Fan fixation tool
Rotax spark plug wrench/ 21mm socket
Fan fixation tool
Rotax spark plug wrench/ 21mm socket

Fan belt adjustment

Remove the fan cover by bending the three tabs retaining it out and gently prying out on the cover. Insert the fan fixation tool into the fan as shown . Using the small end of the Rotax spark plug wrench or a 21mm socket/ratchet, turn the nut on the fan shaft counter clockwise. Remove the nut, washer and fan. Be careful not to lose the key located in the fan shaft. Behind the fan are a series of shims. These control the fan belt adjustment. The removal of shims tightens the belt by shortening the distance between the two pulley halves while the addition of shims loosens the belt by increasing the distance.

Proper adjustment is attained when belt deflection is approximately 1/3 of an inch, at the belt center, when 10 lbs of pressure is applied.When reinstalling place shims that have been removed as per update fig 1 so that they may be reused when a new belt is installed. Belt adjustment should be done within 25 hours of installation and checked on a regular basis.

Disassembly - Rewind starter

Removal from engine

Tools required
10 mm deep reach socket
Ratchet
Snap ring pliers
Knife
Matches

Shop supplies
Low temperature grease
Molykote G-N paste Part#H4372
Low temperature grease
Molykote G-N paste Part#H4372

It may be necessary to remove the recoil handle on some engines to allow removal from aircraft. To do this tie a slip knot in the recoil rope immediately in front of the recoil. Undo or cut the recoil rope at the handle. Disconnect the ignition suppressor box wires, (black and red) from the ignition coil wire plugs (blue/red -blue/black). Remove the four 10 mm socket head bolts and lock washers which hold the rewind starter to the engine. The recoil will come free.

Disassembly-Rope removal

Remove snap ring (1), lock spring,(2) circlip (3) and pawl (4) from recoil starter.

Remove the rope sheave from the recoil. Place a blade screw driver into the hole where the recoil rope exits the sheave.

Reassembly - Rewind starter

When the screwdriver comes up against the key clamp push until the key moves releasing the rope.

Inspection

Inspect recoil spring, rope and mechanism for damaged worn or broken parts. Replace as necessary.

Maintenance

To ensure long trouble free operation of the recoil occasional maintenance is suggested. This maintenance involves light lubrication of the recoil rewind starter spring with low temperature grease. Plus lubrication of the pawl lock spring with Molykote G-N paste.

Reassembly

Tie a knot in recoil handle end of the recoil rope. Install sheave into starter housing, ensuring notch in sheave engages in the spring hook. Rotate sheave assembly counter clockwise until spring is fully compressed. While holding spring under tension, release one turn, and align hole in sheave with recoil housing rope inlet. Install the other end of the rope through housing and into sheave until it passes through window in sheave. Install key clamp into window with teeth pointing so that they bite into rope when a pulling pressure is applied. Lock key clamp. Release tension and recoil rope will be rewound into housing. Reinstall pawl, pawl lock and circlip. Prior to installation of locking spring lubricate with Molykote G-N paste, install spring and install lock ring.

If convenient reinstall recoil handle. Pull rope out. Tie slip knot at recoil, burn end of rope. Install rope into handle and tie knot in rope. Release slip knot, install recoil on engine in reverse order or removal.

Disassembly - Carburetor

Tools required
Flat blade screw driver (supplied in Rotax tool kit)
Phillips screw driver
Small adjustable wrench
Flat blade screw driver (supplied in Rotax tool kit)bingprts.gif (43339 bytes)
Phillips screw driver
Small adjustable wrench

Shop supplies
General purpose cleaner
General purpose cleaner

Carburetor removal

To disconnect carburetor from engine loosen clamps holding carburetor to rubber flange intake boot.Gently pull and the carburetor will separate from the boot. To remove the top loosen the two retaining screws and the top of the carb will come off (1).

To remove throttle cable, compress the carburetor piston spring (3), push the white plastic spring cup (4) out of the carburetor piston (7) move the throttle cable side ways in the carburetor piston. This allows it to release through the larger hole in the bottom of the piston. Remove the jet needle (6) and retaining clip (5). Be careful not to lose the rubber sealing ring (2) located in the carburetor cover plate

With the top removed place the carburetor on the bench upside down. Slide the bowl spring clip side ways and the carb bowl will come free. (It may be necessary to gently tap the bowl to break it free from the bowl gasket). Carefully remove the gasket.

Disassembly - Carburetor

In the center of the carburetor covering the main jet will be a seeve sleeve (8) (this looks like a little filter) Remove it (its purpose is to stop foam from entering the main jet).

Looking at the top of the main jet you will see a number. This indicates the size of the jet. For jets specifications refer to section P - 01. Remove the main jet (9) . Remove the mixing tube and (10) this will allow removal of the needle jet (11).

Located beside the main jet is an orifice containing the idler jet (12). Using a small screw driver (supplied in Rotax tool kit), remove the idler jet.

Next remove the float pin (15) This will allow removal of the float bracket (16) or float depending on which type your engine is using.

Under the float bracket is the float needle (14)and float needle clip (13)Remove them. Two screws, one large and one small, are located on the side of the carburetor. The larger screw with the spring under it is the idle (18) adjustment screw . The smaller with the rubber ring under it is the air regulating screw(17).

Cleaning

Using a general purpose cleaning solvent clean all the parts. Check the main jet and idler jet orifices to ensure that they are not plugged.Using compressed air blow through the vent holes, main jet and idler jet.

Reassembly

Place the carb body on the bench inverted. Replace the needle jet mixing tube and thread the main jet into the mixing tube.

Install the needle jet needle clip,and float bracket or float. If properly adjusted, the float bracket arms should be level when the carburetor is sitting inverted on the bench. Now turn the carburetor right side up and check to make sure that the needle valve is not sticking. Invert the carb once more.

Install the idler jet.Install the float chamber gasket and sieve sleeve. Install the floats (depending on carb style). Install bowl gasket. Install float bowl and lock into place with the spring clip. Turning carburetor over install the spring and idle adjustment screw. Install the O ring and air regulating screw.

Engine idle speed for the 377/447/503 engines is 2,000 rpm under full load conditions. The proper air screw adjustment is 1/2 turn except with dual intake silencer when it is 1 turn. Install the throttle cable through the rubber grommet and replace throttle cover plate.

Make sure that the rubber O ring is in place under the cover plate. Install the carburetor piston spring. Install the white plastic spring cup over the end of the carburetor piston spring using the cup compress the spring and making sure the throttle cable protrudes through the correct hole in the spring cup. Install jet needle and holding plate into the carburetor piston. Place the throttle cable end into the piston and down through the hole in the side.

Once through, slide the throttle cable over and up to lock it into position. Now allow the plastic spring cup to slide down over top of the spring clip. Install the unit into the throttle body making sure that the piston guide hole and carb body guide line up. Tighten up the two cover plate retaining screws.

Slip the carburetor body into the rubber socket and make sure the arrow is pointing the direction of fuel flow and tighten the retaining clamp.

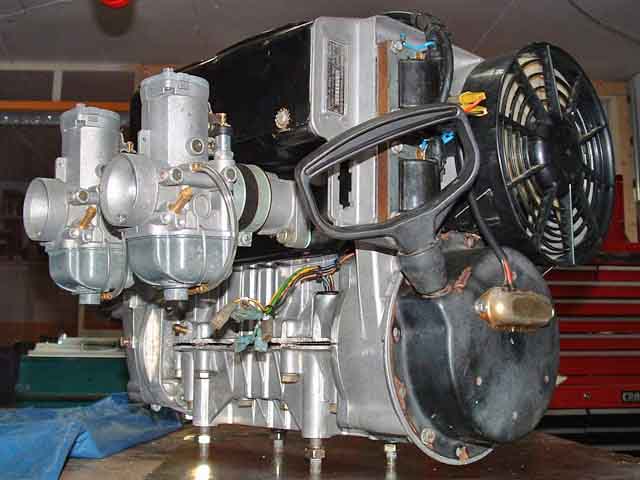

Rotax 503 Bosch points ignition engine.
Rotax 503 Bosch points ignition aircraft engine.
