Single place Part 103 ultralights in the United States are defined as single place ultralight aircraft that weigh 254 lbs or less, have a stall speed not more than 24 knots, a top speed of 55 knots, and carry no more than 5 gallons of fuel. To fly a legal Part 103 ultralight aircraft in the United States the pilot does not require a pilot license.

Single place aircraft weighing more than 254 lbs. in the U.S. require a pilots license and must be built as experimental, amateur built, homebuilt aircraft. These include weight shift aircraft, more commonly known as trikes, powered parachutes, and powered para-gliders.

Single place ultralights in Canada can weigh up to 1200 lbs. and an ultralight pilots license is required to fly them.

Quicksilver MX parts and service for ultralight and light sport aircraft.

Aircraft instruments, guages, engine gauges for ultralight and light sport aircraft.

Aircraft repairs for ultralight and light sport aircraft.

Rotax 503 engine, sales, service, parts and accessories for ultralight and light sport aircraft.

Rotax gear boxes, parts, and service for ultralight and light sport aircraft.



Single Seat Buyers Guide Index



Ultralight News

Ridge Runner Index

Ridge Runner Specifications & Pictures

Ridge Runner Video

Ridge Runner pictures and specifications, images of the Ridge Runner amateur built experimental homebuilt aircraft specifications and data.

Ridge Runner pictures, images and specifications for the Ridge Runner

Ridge Runner pictures, images and specifications for the Ridge Runner
amateur built experimental homebuilt aircraft.

Flight training for ultralight and light sport aircraft.

Windsocks, portable windsocks, replacement windsocks.

Throttle cables for Rotax, Hirth, Kawasaki engines used on ultralight and light sport aircraft.

  Ridge Runner Ultralight Ridge Runner II **
Empty Weight 250lbs 350lbs
Gross Weight 500lbs 900lbs
Est. Useful Load 259lbs 650lbs
Wing Span 26.20 ft 26.20 ft
Wing Cord 46 in 46 in
Wing Area 99.40 sq. ft 99.40 sq. ft
Length 17 ft 17 ft
Height 5.17 ft 5.17 ft
Width Folded 8 ft 8 ft
Length Folded 20 ft 20 ft
Gear Width 4.66 ft 4.66 ft
Cabin Width 24 in 24 in
Fuel Capacity 5 gal 10 gal
Range 175 miles 325 miles
Rate of Climb fpm. 800 1400
Cruise Speed MPH 58 90
Stall Speed MPH 24 29
Takeoff Roll ft. W/flaps 50 100
Landing Ground roll ft. 50 75

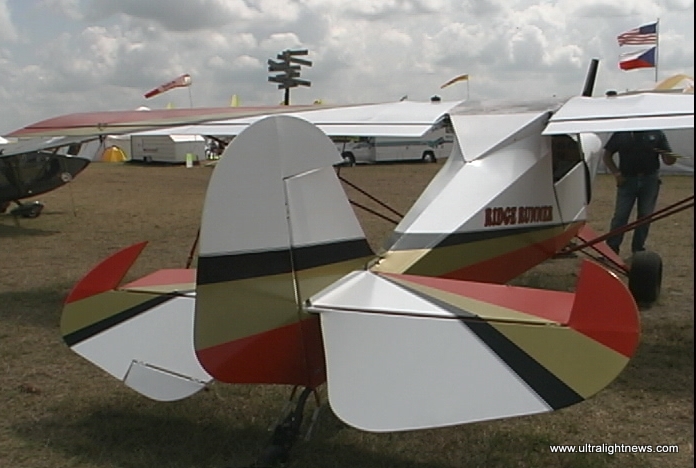

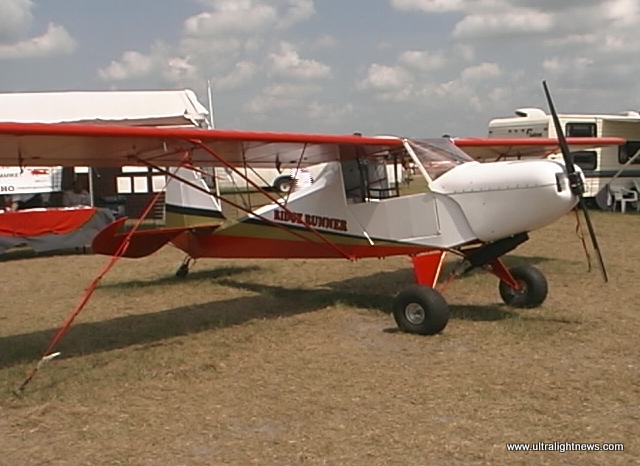

Ridge Runner Experimental Aircraft
Ridge Runner Experimental Aircraft

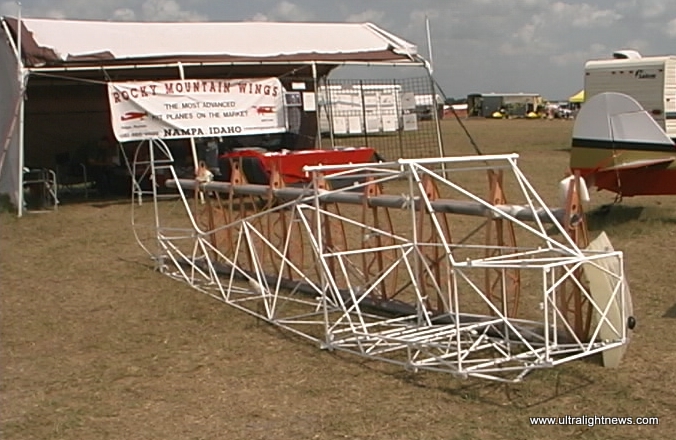

Ridge Runner Experimental Homebuilt Aircraft
Ridge Runner Experimental Homebuilt Aircraft

To view the pictures, images of the  Ridge Runner click on the smaller images and they will enlarge. To return to the index page for the Ridge Runner click on  Ridge Runner Index link, to view video of the Ridge Runner click on the Video link, to return to the Main Index click on the UltralightNews link.
