Single place Part 103 ultralights in the United States are defined as single
place ultralight aircraft that weigh 254 lbs or less, have a stall speed
not more than 24 knots, a top
speed of 55 knots, and carry no more than 5 gallons of fuel. To fly a
legal Part 103
ultralight aircraft in the United States the pilot does not require a
pilot license.
Single place aircraft weighing more than 254 lbs. in the U.S. require a
pilots license and must be built as experimental, amateur built,
homebuilt aircraft. These include weight shift aircraft, more commonly
known as trikes, powered parachutes, and powered para-gliders.
Single place ultralights in Canada can weigh up to 1200 lbs. and an
ultralight pilots license is required to fly them.
|
|
|
|
|
|
|
|

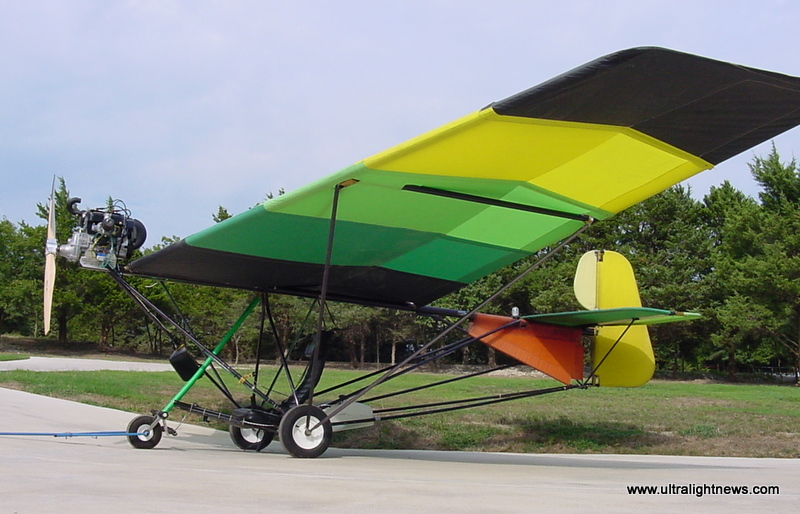

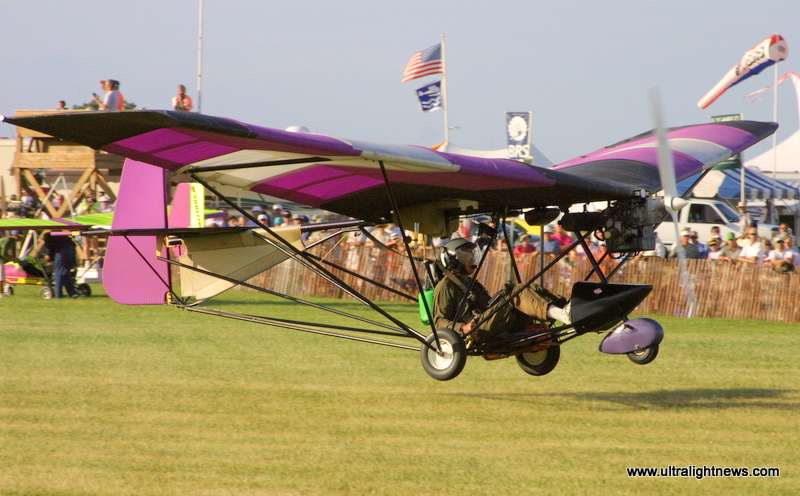

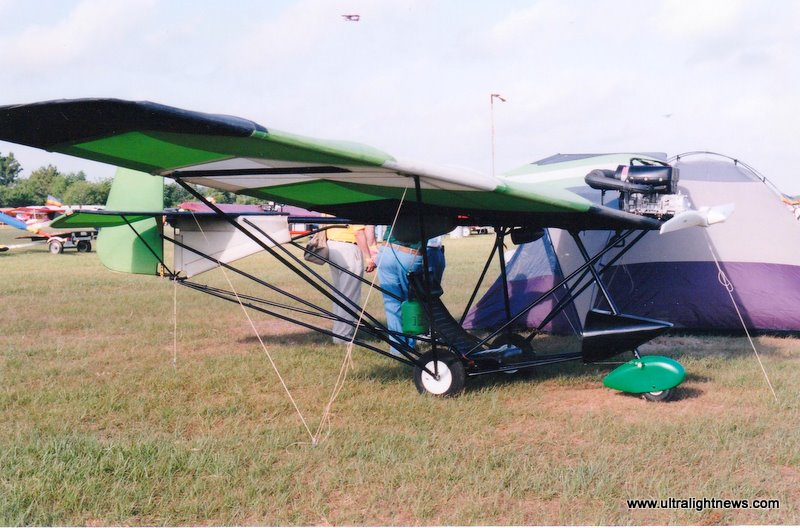

Weedhopper 1 pictures and
specifications, images of the
Weedhopper 1 amateur built experimental homebuilt aircraft
specifications and data.
|
 |
Weedhopper 1 pictures, images
and specifications for the
Weedhopper 1
amateur built experimental homebuilt aircraft.
|
|
|
Weedhopper Standard
Performance Specifications
|
| Horsepower: |
50 hp |
| Fuel Capacity: |
13 gal |
49 L |
| Range: |
200 nm |
370 km |
230 mi |
| Cruise: |
58 kts |
107 kmh |
67 mph |
| Stall: |
28 kts |
52 kmh |
32 mph |
| Climb: |
600 ft/min |
3 m/sec |
| Takeoff Distance: |
400 ft |
122 m |
| Landing Distance: |
400 ft |
122 m |
Weedhopper Standard
Specifications
|
| Gross Weight: |
726 lbs |
329 kg |
| Empty Weight: |
330 lbs |
150 kg |
| Useful Load: |
396 lbs |
180 kg |
| Wingspan: |
28 ft |
8.53 m |
|
Weedhopper 1
Experimental Aircraft |
Weedhopper 1
Experimental Homebuilt Aircraft |
|
|
|
|
To view the
pictures, images of the Weedhopper 1 click on the smaller
images and they will enlarge. To return to the index page for the Weedhopper 1 click on Weedhopper 1 Index link, to view
video of the Weedhopper 1 click on the Video link, to
return to the Main Index click on the UltralightNews link. |
|
|
|
|
|
|
|
