Single place Part 103 ultralights in the United States are defined as single
place ultralight aircraft that weigh 254 lbs or less, have a stall speed
not more than 24 knots, a top
speed of 55 knots, and carry no more than 5 gallons of fuel. To fly a
legal Part 103
ultralight aircraft in the United States the pilot does not require a
pilot license.
Single place aircraft weighing more than 254 lbs. in the U.S. require a
pilots license and must be built as experimental, amateur built,
homebuilt aircraft. These include weight shift aircraft, more commonly
known as trikes, powered parachutes, and powered para-gliders.
Single place ultralights in Canada can weigh up to 1200 lbs. and an
ultralight pilots license is required to fly them.
|
|
|
|
|
|
|
|
T Bird pictures and
specifications, images of the
T Bird amateur built experimental homebuilt aircraft
specifications and data.
|
 |
T Bird pictures, images
and specifications for the
T Bird
amateur built experimental homebuilt aircraft.
|
|
|
Golden Circle Air T-Bird I
Performance Specifications
|
| Horsepower: |
46 hp |
| Fuel Capacity: |
5 gal |
19 L |
| Range: |
120 nm |
222 km |
138 mi |
| Cruise: |
56 kts |
104 kmh |
64 mph |
| Stall: |
24 kts |
44 kmh |
28 mph |
| Climb: |
800 ft/min |
4.1 m/sec |
| Ceiling: |
10,000 ft |
3,048 m |
| Takeoff Distance: |
75 ft |
23 m |
| Landing Distance: |
100 ft |
30 m |
Golden Circle Air T-Bird I
Performance Specifications
|
| Gross Weight: |
558 lbs |
253 kg |
| Empty Weight: |
258 lbs |
117 kg |
| Useful Load: |
300 lbs |
136 kg |
| Wingspan: |
31 ft |
9.45 m |
|
| Length: |
18 ft |
5.49 m |
| Height: |
5.75 ft |
1.75 m |
|
T Bird
Experimental Aircraft |
T Bird
Experimental Homebuilt Aircraft |
|
|
|
|

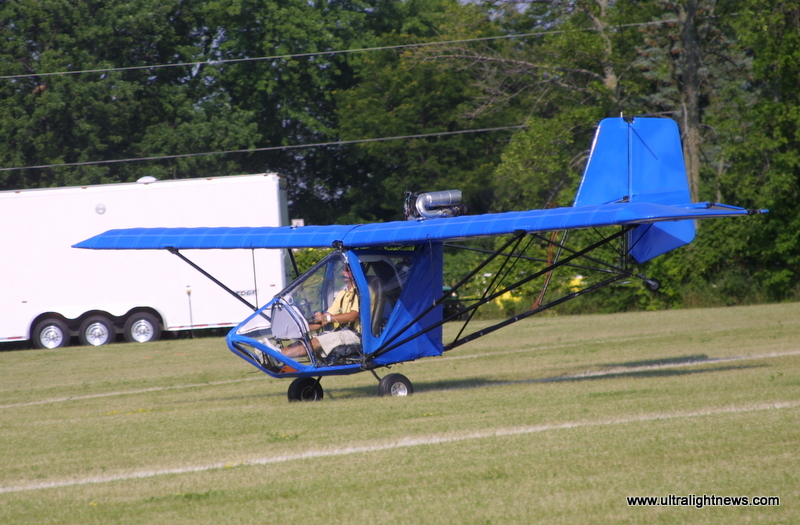

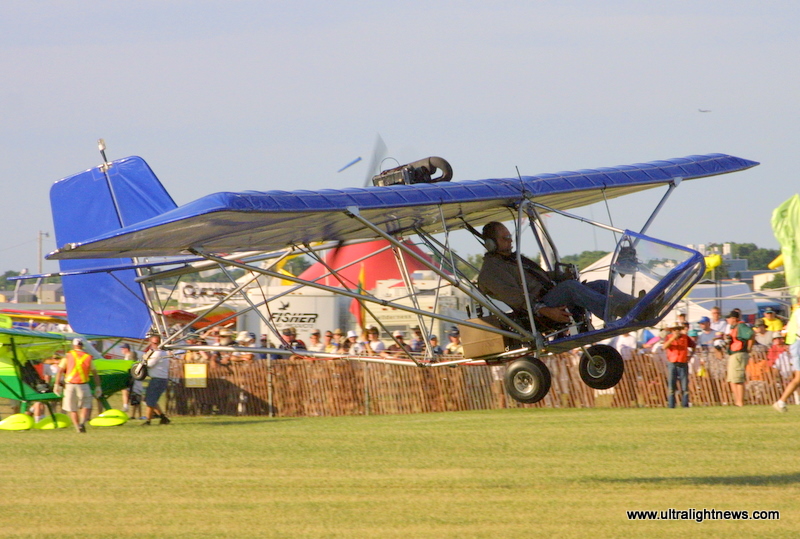

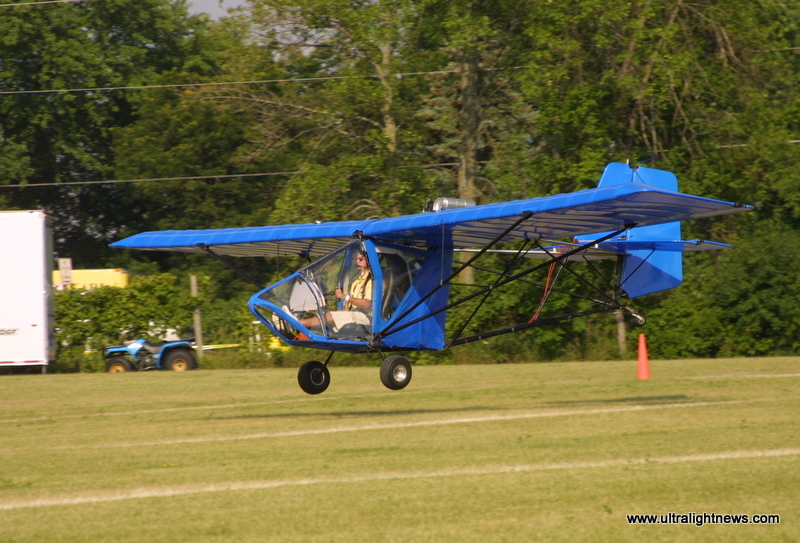

To view the
pictures, images of the T Bird click on the smaller
images and they will enlarge. To return to the index page for the T Bird click on T Bird Index link, to view
video of the T Bird click on the Video link, to
return to the Main Index click on the UltralightNews link. |
|
|
|
|
|
|
|
