Carlson Sparrow Ultralight Performance Specifications

Horsepower: 28 hp
Fuel Capacity: 5 gal 19 L
Range: 200 nm 370 km 230 mi
Cruise: 50 kts 93 kmh 58 mph
Stall: 23 kts 43 kmh 26 mph
Climb: 750 ft/min 3.8 m/sec
Takeoff Distance: 140 ft 43 m
Landing Distance: 195 ft 59 m

Carlson Sparrow Ultralight Specifications


Gross Weight: 504 lbs 229 kg
Empty Weight: 254 lbs 115 kg
Useful Load: 250 lbs 113 kg
Wingspan: 30.2 ft 9.2 m
Length: 16.75 ft 5.11 m
Height: 6.9 ft 2.1 m

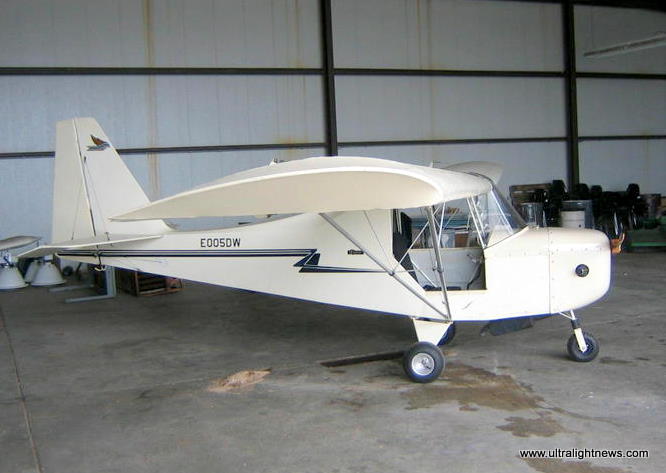

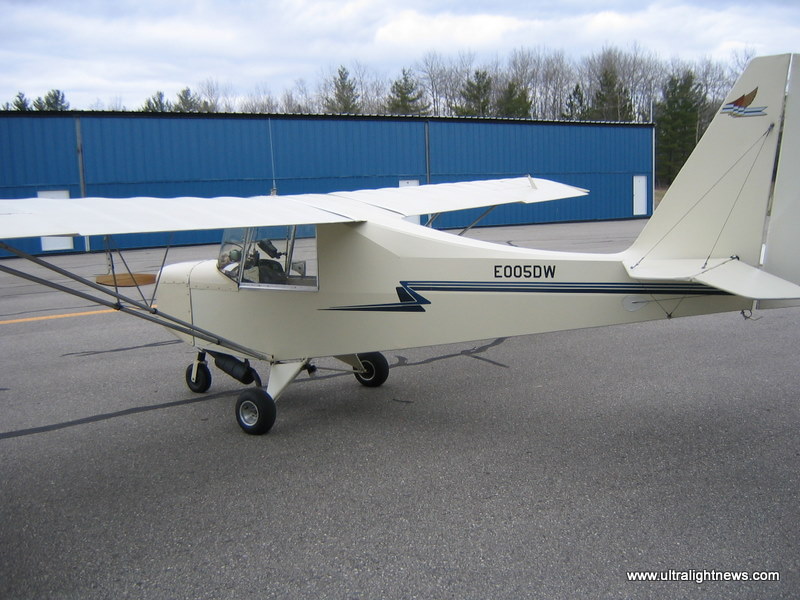

Carlson Sparrow Experimental Aircraft
Carlson Sparrow Experimental Aircraft
Carlson Sparrow Experimental Homebuilt Aircraft
Carlson Sparrow Experimental Homebuilt Aircraft

To view the pictures, images of the  Carlson Sparrow click on the smaller images and they will enlarge. To return to the index page for the Carlson Sparrow click on  Carlson Sparrow Index link, to view video of the Carlson Sparrow click on the Video link, to return to the Main Index click on the UltralightNews link.
