Single place Part 103 ultralights in the United States are defined as single
place ultralight aircraft that weigh 254 lbs or less, have a stall speed
not more than 24 knots, a top
speed of 55 knots, and carry no more than 5 gallons of fuel. To fly a
legal Part 103
ultralight aircraft in the United States the pilot does not require a
pilot license.
Single place aircraft weighing more than 254 lbs. in the U.S. require a
pilots license and must be built as experimental, amateur built,
homebuilt aircraft. These include weight shift aircraft, more commonly
known as trikes, powered parachutes, and powered para-gliders.
Single place ultralights in Canada can weigh up to 1200 lbs. and an
ultralight pilots license is required to fly them.
|
|
|
|
|
|
|
|
Hipps J3 Kitten pictures and
specifications, images of the
Hipps J3 Kitten amateur built experimental homebuilt aircraft
specifications and data.
|
 |
Hipps J3 Kitten pictures, images
and specifications for the
Hipps J3 Kitten
amateur built experimental homebuilt aircraft.
|
|
|
Hipps Superbirds J-3 Kitten
Performance Specifications
|
| Horsepower: |
28 hp |
| Fuel Capacity: |
5 gal |
19 L |
| Range: |
150 nm |
278 km |
173 mi |
| Cruise: |
52 kts |
96 kmh |
60 mph |
| Stall: |
21 kts |
39 kmh |
24 mph |
| Climb: |
750 ft/min |
3.8 m/sec |
| Ceiling: |
12,500 ft |
3,810 m |
| Takeoff Distance: |
50 ft |
15 m |
| Landing Distance: |
200 ft |
61 m |
| Gross Weight: |
500 lbs |
227 kg |
Hipps Superbirds J-3 Kitten
Specifications
|
| Empty Weight: |
250 lbs |
113 kg |
| Useful Load: |
250 lbs |
113 kg |
| Wingspan: |
30 ft |
9.14 m |
|
| Length: |
16.25 ft |
4.95 m |
| Height: |
5.2 ft |
1.58 m |
|
Hipps J3 Kitten
Experimental Aircraft |
Hipps J3 Kitten
Experimental Homebuilt Aircraft |
|
|
|
|

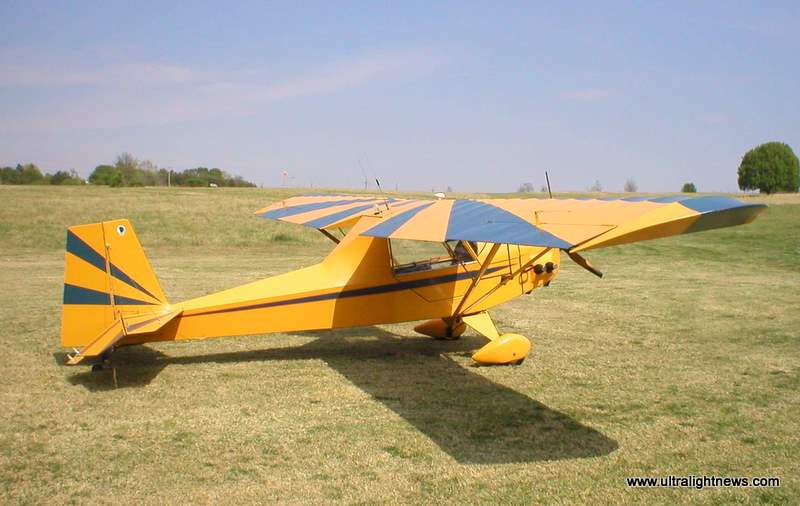

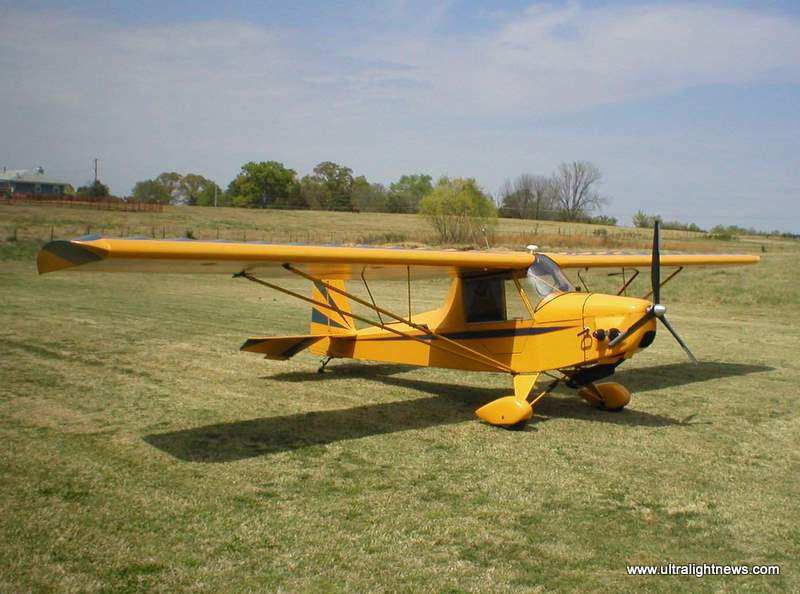

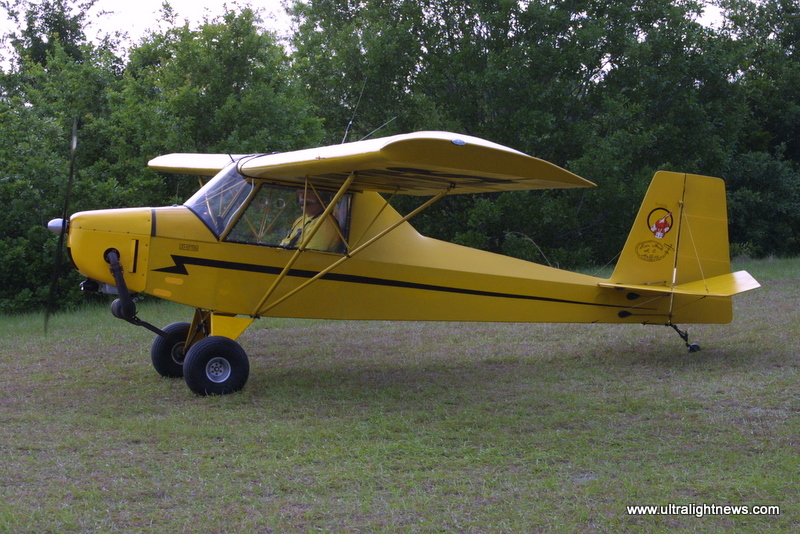

To view the
pictures, images of the Hipps J3 Kitten click on the smaller
images and they will enlarge. To return to the index page for the Hipps J3 Kitten click on Hipps J3 Kitten Index link, to view
video of the Hipps J3 Kitten click on the Video link, to
return to the Main Index click on the UltralightNews link. |
|
|
|
|
|
|
|
