Single place Part 103 ultralights in the United States are defined as single place ultralight aircraft that weigh 254 lbs or less, have a stall speed not more than 24 knots, a top speed of 55 knots, and carry no more than 5 gallons of fuel. To fly a legal Part 103 ultralight aircraft in the United States the pilot does not require a pilot license.

Single place aircraft weighing more than 254 lbs. in the U.S. require a pilots license and must be built as experimental, amateur built, homebuilt aircraft. These include weight shift aircraft, more commonly known as trikes, powered parachutes, and powered para-gliders.

Single place ultralights in Canada can weigh up to 1200 lbs. and an ultralight pilots license is required to fly them.

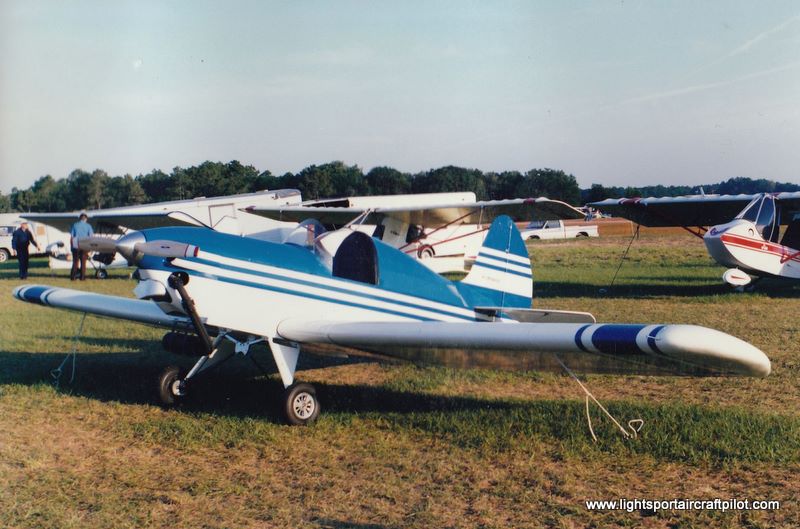

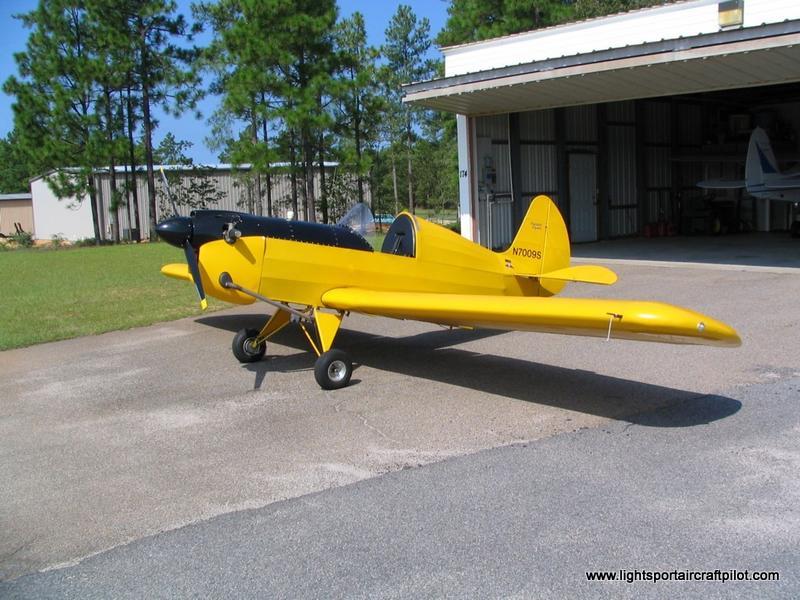

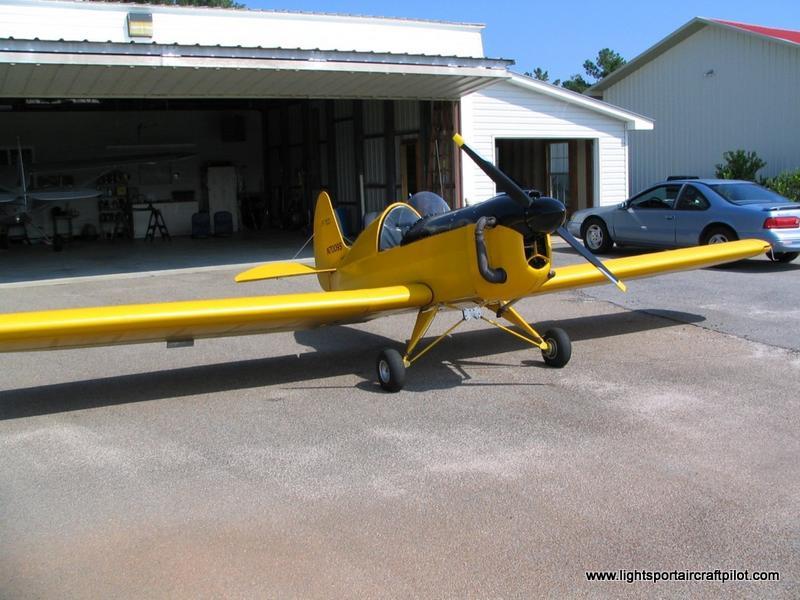

H3 Pegasus pictures, images and specifications for the H3 Pegasus
amateur built experimental homebuilt aircraft.

H-3 Pegasus Experimental Amateur Built Aircraft Specifications

Airframe

Wing Span

25 Feet

Fuselage Length

15 Feet

Empty Weight

305 to 345 lbs

Wing Area

110 Sq Ft

Power

Engine

28 to 55 HP

H-3 Pegasus Experimental Amateur Built Aircraft Performance Specifications

Stall Speed

30-41 mph

Cruise Speed

65-80 mph

Top Speed

80-95 mph

Gross Weight

555-595 lbs

Design Load @500 lbs gross wt

+5, -3.5

Climb Rate

500 to 700 fpm

Fuel Capacity

5 to 7.5 gallons

To view the pictures, images of the  H3 Pegasus click on the smaller images and they will enlarge. To return to the index page for the H3 Pegasus click on  H3 Pegasus Index link, to view video of the H3 Pegasus click on the Video link, to return to the Main Index click on the UltralightNews link.
