Fisher FP404
experimental aircraft pictures, Fisher FP404 amateur built aircraft
specifications, Fisher FP404 homebuilt aircraft specifications and photographs,
Ultralight News newsmagazine.
|
Single place Part 103 ultralights in the United States are defined as single
place ultralight aircraft that weigh 254 lbs or less, have a stall speed
not more than 24 knots, a top
speed of 55 knots, and carry no more than 5 gallons of fuel. To fly a
legal Part 103
ultralight aircraft in the United States the pilot does not require a
pilot license.
Single place aircraft weighing more than 254 lbs. in the U.S. require a
pilots license and must be built as experimental, amateur built,
homebuilt aircraft. These include weight shift aircraft, more commonly
known as trikes, powered parachutes, and powered para-gliders.
Single place ultralights in Canada can weigh up to 1200 lbs. and an
ultralight pilots license is required to fly them.
|
|
|
|
|
|
|
|
Fisher FP404 pictures and
specifications, images of the
Fisher FP404 amateur built experimental homebuilt aircraft
specifications and data.
|
 |
Fisher FP404 pictures, images
and specifications for the
Fisher FP404
amateur built experimental homebuilt aircraft.
|
|
|
Fisher FP 404
Performance Specifications
|
| Horsepower: |
65
hp |
| Fuel
Capacity: |
5 gal |
19
L |
| Range: |
122 nm |
226 km |
140 mi |
| Cruise: |
63 kts |
117 kmh |
72 mph |
| Stall: |
26 kts |
48 kmh |
30 mph |
| Climb: |
800 ft/min |
4.1 m/sec |
| Ceiling: |
10,000 ft |
3,048 m |
| Takeoff
Distance: |
125 ft |
38
m |
| Landing
Distance: |
200 ft |
61
m |
Fisher FP 404
Specifications
|
| Gross
Weight: |
540 lbs |
245 kg |
| Empty
Weight: |
275 lbs |
125 kg |
| Useful
Load: |
265 lbs |
120 kg |
|
Wingspan: |
18
ft |
5.49 m |
|
| Length: |
14.5 ft |
4.42 m |
| Height: |
5.42 ft |
1.65 m |
|

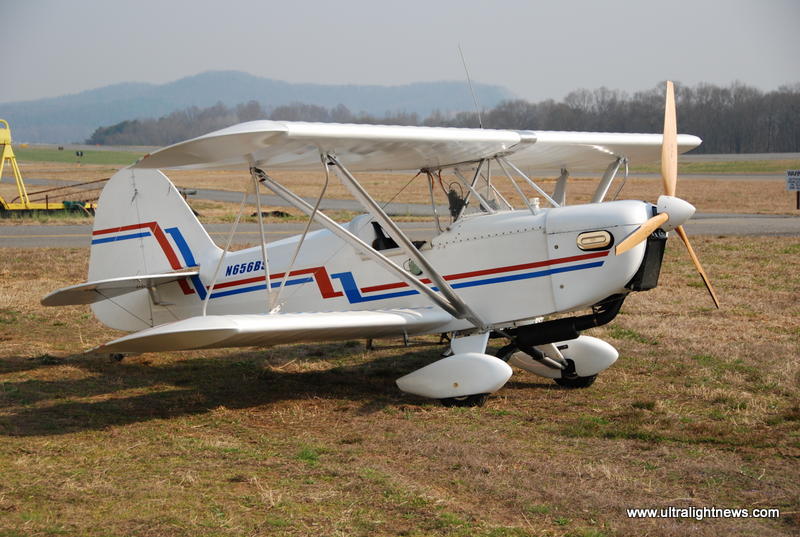

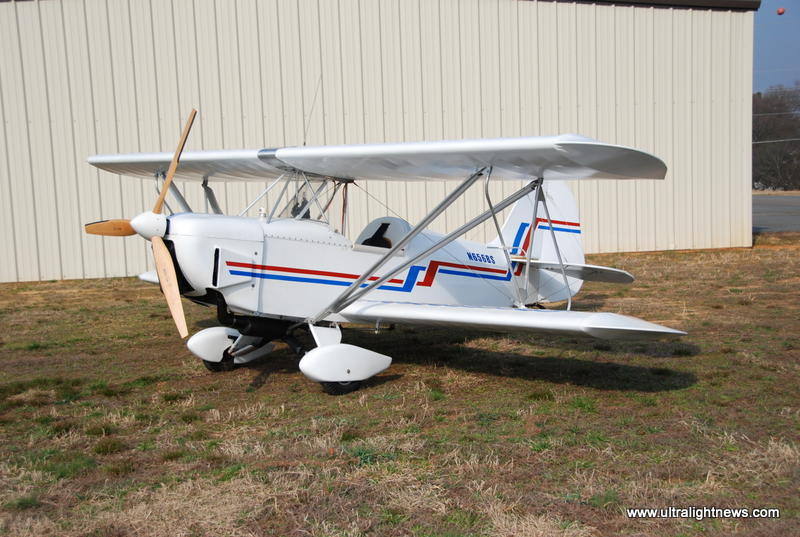

Fisher FP404
Experimental Aircraft |
Fisher FP404
Experimental Homebuilt Aircraft |
|
|
|
|
To view the
pictures, images of the Fisher FP404 click on the smaller
images and they will enlarge. To return to the index page for the Fisher FP404 click on Fisher FP404 Index link, to view
video of the Fisher FP404 click on the Video link, to
return to the Main Index click on the UltralightNews link. |
|
|
|
|
|
|
|
