Loehle Fokker DVII
experimental aircraft pictures, Loehle Fokker DVII amateur built aircraft
images, Loehle Fokker DVII homebuilt plane photographs,
Ultralight News newsmagazine.
|
Single place Part 103 ultralights in the United States are defined as single
place ultralight aircraft that weigh 254 lbs or less, have a stall speed
not more than 24 knots, a top
speed of 55 knots, and carry no more than 5 gallons of fuel. To fly a
legal Part 103
ultralight aircraft in the United States the pilot does not require a
pilot license.
Single place aircraft weighing more than 254 lbs. in the U.S. require a
pilots license and must be built as experimental, amateur built,
homebuilt aircraft. These include weight shift aircraft, more commonly
known as trikes, powered parachutes, and powered para-gliders.
Single place ultralights in Canada can weigh up to 1200 lbs. and an
ultralight pilots license is required to fly them.
|
|
|
|
|
|
|
|

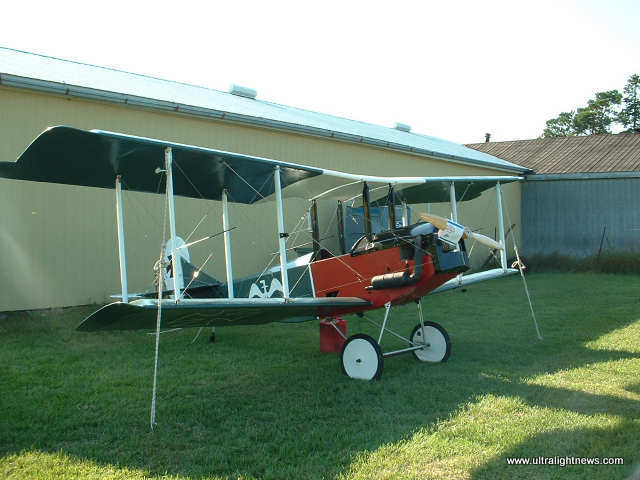

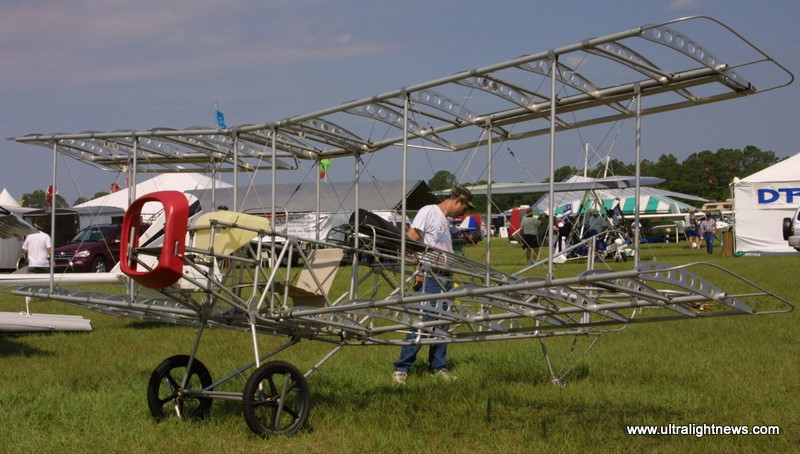

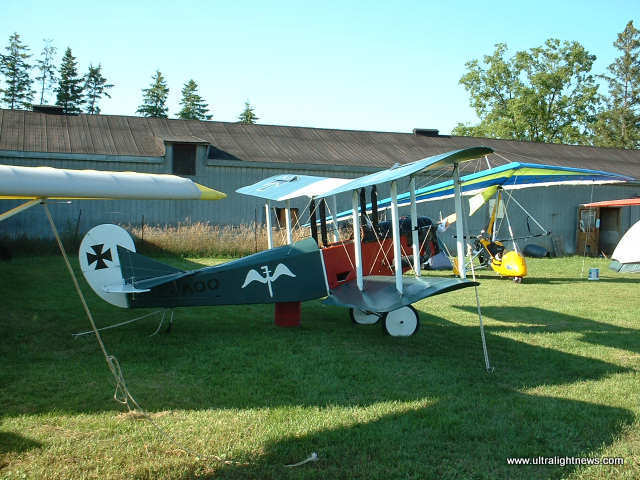

Loehle Fokker DVII pictures, images of the
Loehle Fokker DVII ultralight, experimental, lightsport aircraft.
|
 |
Loehle Fokker DVII pictures, images of the
Loehle Fokker DVII ultralight, experimental, lightsport aircraft.
|
|
|
Loehle Fokker
D-VII Performance Specifications
|
| Fuel
Capacity: |
10 gal |
38
L |
| Range: |
174 nm |
322 km |
200 mi |
| Cruise: |
57 kts |
106 kmh |
66 mph |
| Stall: |
19 kts |
35 kmh |
22 mph |
| Climb: |
1,000 ft/min |
5.1 m/sec |
| Ceiling: |
12,500 ft |
3,810 m |
| Takeoff
Distance: |
75 ft |
23
m |
| Landing
Distance: |
150 ft |
46
m |
Loehle Fokker
D-VII Specifications
|
| Gross
Weight: |
525 lbs |
238 kg |
| Empty
Weight: |
265 lbs |
120 kg |
| Useful
Load: |
260 lbs |
118 kg |
|
Loehle Fokker DVII
Ultralight Aircraft |
Loehle Fokker DVII
Experimental Aircraft |
|
|
|
|
To view the
pictures, images of the Loehle Fokker DVII click on the smaller
images and they will enlarge. To return to the index page for the Loehle Fokker DVII click on Loehle Fokker DVII Index link, to view
video of the Loehle Fokker DVII click on the Video link, to
return to the Main Index click on the UltralightNews link. |
|
|
|
|
|
|
|
