JDT Mini-Max EROS
ultralight aircraft pictures, JDT Mini-Max EROS ultra lite aircraft
images, JDT Mini-Max EROS ultralight plane photographs,
Ultralight News newsmagazine.
|
Single place Part 103 ultralights in the United States are defined as single
place ultralight aircraft that weigh 254 lbs or less, have a stall speed
not more than 24 knots, a top
speed of 55 knots, and carry no more than 5 gallons of fuel. To fly a
legal Part 103
ultralight aircraft in the United States the pilot does not require a
pilot license.
Single place aircraft weighing more than 254 lbs. in the U.S. require a
pilots license and must be built as experimental, amateur built,
homebuilt aircraft. These include weight shift aircraft, more commonly
known as trikes, powered parachutes, and powered para-gliders.
Single place ultralights in Canada can weigh up to 1200 lbs. and an
ultralight pilots license is required to fly them.
|
|
|
|
|
|
|
|

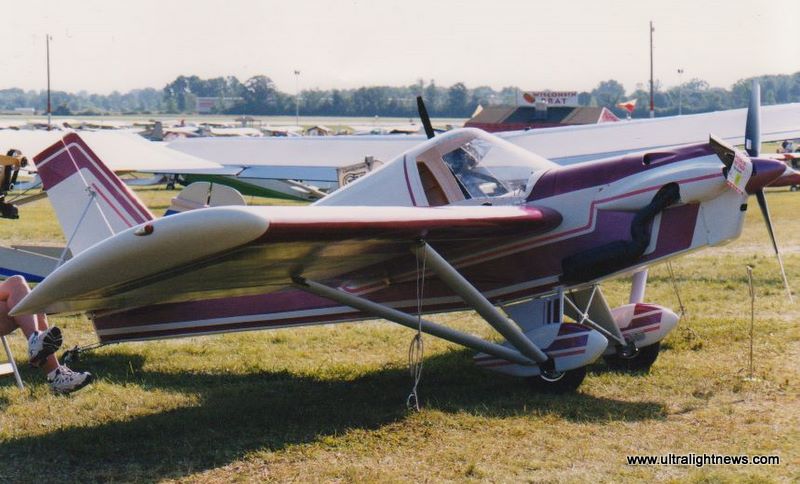

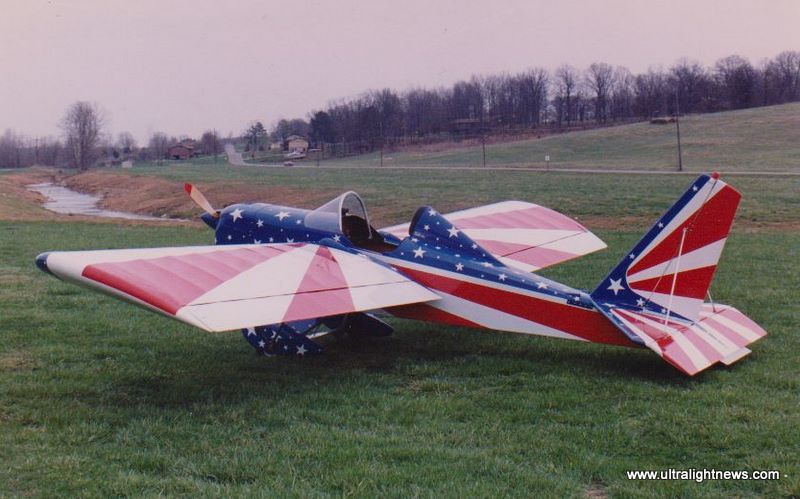

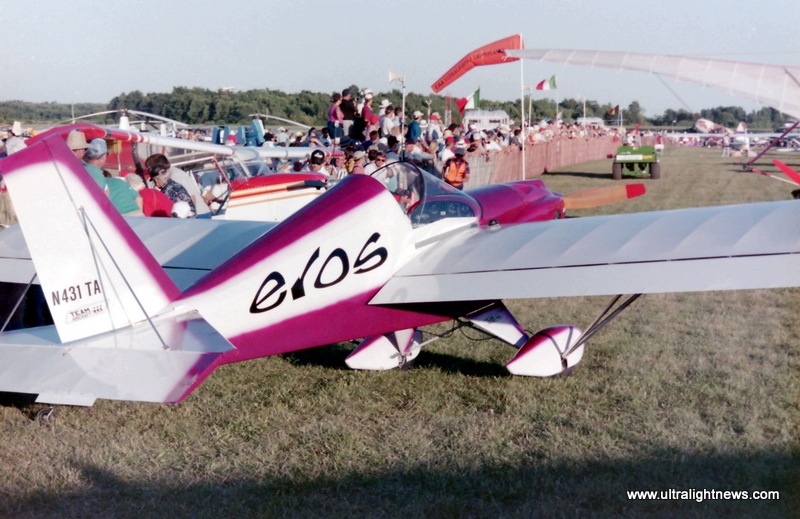

JDT Mini-Max EROS pictures, images of the
JDT Mini-Max EROS ultralight, experimental, lightsport aircraft.
|
 |
JDT Mini-Max EROS pictures, images of the
JDT Mini-Max EROS ultralight, experimental, lightsport aircraft.
|
|
|
JDT Mini Max Eros performance data
|
| Horsepower: |
52
hp |
| Fuel
Capacity: |
5 gal |
19
L |
| Range: |
109 nm |
202 km |
125 mi |
| Cruise: |
74 kts |
137 kmh |
85 mph |
| Stall: |
30 kts |
56 kmh |
35 mph |
| Climb: |
1,600 ft/min |
8.1 m/sec |
| Ceiling: |
12,000 ft |
3,658 m |
| Takeoff
Distance: |
125 ft |
38
m |
| Landing
Distance: |
225 ft |
69
m |
JDT Mini Max Eros specifications
|
| Gross
Weight: |
640 lbs |
290 kg |
| Empty
Weight: |
345 lbs |
156 kg |
| Useful
Load: |
295 lbs |
134 kg |
|
Wingspan: |
26.5 ft |
8.08 m |
|
| Length: |
16 ft |
4.88 m |
| Height: |
5 ft |
1.52 m |
|
JDT Mini-Max EROS
Ultralight Aircraft |
JDT Mini-Max EROS
Experimental Aircraft |
|
|
|
|
To view the
pictures, images of the JDT Mini-Max EROS click on the smaller
images and they will enlarge. To return to the index page for the JDT Mini-Max EROS click on JDT Mini-Max EROS Index link, to view
video of the JDT Mini-Max EROS click on the Video link, to
return to the Main Index click on the UltralightNews link. |
|
|
|
|
|
|
|
