Airdrome Aeroplanes Fokker Eindecker E 3
ultralight aircraft pictures, Airdrome Aeroplanes Fokker Eindecker E 3 ultra lite aircraft
images, Airdrome Aeroplanes Fokker Eindecker E 3
experimental aircraft photographs,
Ultralight News newsmagazine.
|
Single place Part 103 ultralights in the United States are defined as single
place ultralight aircraft that weigh 254 lbs or less, have a stall speed
not more than 24 knots, a top
speed of 55 knots, and carry no more than 5 gallons of fuel. To fly a
legal Part 103
ultralight aircraft in the United States the pilot does not require a
pilot license.
Single place aircraft weighing more than 254 lbs. in the U.S. require a
pilots license and must be built as experimental, amateur built,
homebuilt aircraft. These include weight shift aircraft, more commonly
known as trikes, powered parachutes, and powered para-gliders.
Single place ultralights in Canada can weigh up to 1200 lbs. and an
ultralight pilots license is required to fly them.
|
|
|
|
|
|
|
|

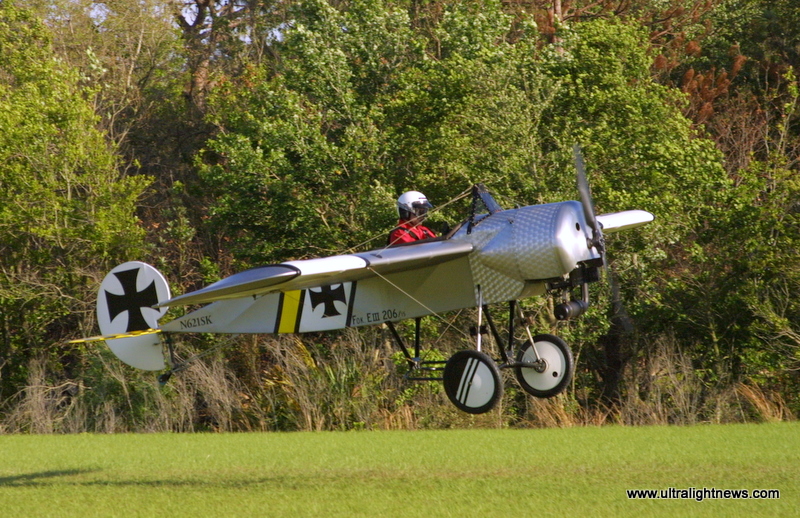

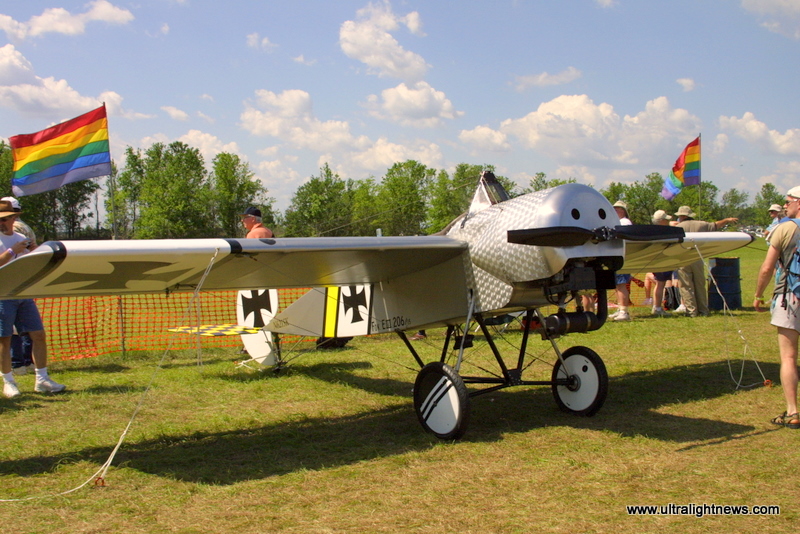

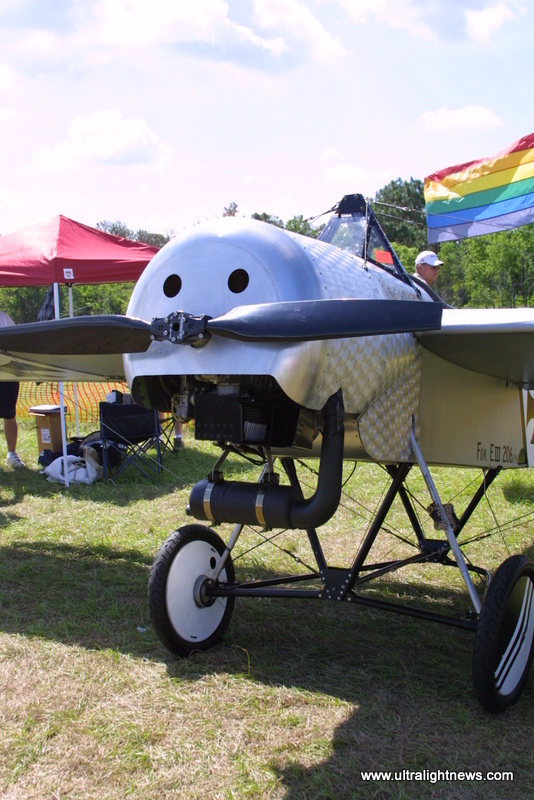

Airdrome Aeroplanes Fokker Eindecker E 3 pictures, images of the
Airdrome Aeroplanes Fokker Eindecker E 3 ultralight, experimental, lightsport aircraft.
|
 |
Airdrome Aeroplanes Fokker Eindecker E 3 pictures, images of the
Airdrome Aeroplanes
Fokker Eindecker E 3 ultralight, experimental, lightsport aircraft.
|
|
|
Airdrome
Aeroplanes Fokker E-III Eindecker
Specifications.
|
| Horsepower: |
Rotax 503 50 hp |
| Fuel
Capacity: |
9 gal |
34
L |
| Gross
Weight: |
548 lbs |
249 kg |
| Empty
Weight: |
238 lbs |
108 kg |
| Useful
Load: |
310 lbs |
141 kg |
|
Wingspan: |
24
ft |
7.32 m |
|
| Length: |
15 ft |
4.57 m |
Airdrome
Aeroplanes Fokker E-III Eindecker Performance
Specifications
|
| Cruise: |
47 kts |
87 kmh |
54 mph |
| Stall: |
23 kts |
43 kmh |
26 mph |
| Climb: |
1,100 ft/min |
5.6 m/sec |
| Range: |
160 nm |
296 km |
184 mi |
| Takeoff
Distance: |
120 ft |
37
m |
| Landing
Distance: |
280 ft |
85
m |
|
Airdrome Aeroplanes Fokker Eindecker E 3 |
Airdrome Aeroplanes Fokker Eindecker E 3 |
|
|
|
|
To view the
pictures, images of the Airdrome Aeroplanes Fokker Eindecker E 3 click on the smaller
images and they will enlarge. To return to the index page for the Airdrome Aeroplanes Fokker Eindecker E 3 click on Airdrome Aeroplanes Fokker Eindecker E 3 Index link, to view
video of the Airdrome Aeroplanes Fokker Eindecker E 3 click on the Video link, to
return to the Main Index click on the UltralightNews link. |
|
|
|
|
|
|
|
