Single place Part 103 ultralights in the United States are defined as single place ultralight aircraft that weigh 254 lbs or less, have a stall speed not more than 24 knots, a top speed of 55 knots, and carry no more than 5 gallons of fuel. To fly a legal Part 103 ultralight aircraft in the United States the pilot does not require a pilot license.

Single place aircraft weighing more than 254 lbs. in the U.S. require a pilots license and must be built as experimental, amateur built, homebuilt aircraft. These include weight shift aircraft, more commonly known as trikes, powered parachutes, and powered para-gliders.

Single place ultralights in Canada can weigh up to 1200 lbs. and an ultralight pilots license is required to fly them.

Quicksilver MX parts and service for ultralight and light sport aircraft.

Aircraft instruments, guages, engine gauges for ultralight and light sport aircraft.

Aircraft repairs for ultralight and light sport aircraft.

Rotax 912, Rotax 912 S, Rotax 914 aircraft engine sales, service, parts and accessories.

Rotax gear boxes, parts, and service for ultralight and light sport aircraft.

Single Seat Buyers Guide Index        HOME

Ultralight News

Quad City Challenger Index

Quad City Challenger Pictures

Quad City Challenger Video

Quad City Challenger pictures, images of the Quad City Challenger ultralight, experimental, lightsport aircraft.

Quad City Challenger 1 ultralight aircraft pictures, Quad City Challenger 1 ultra lite aircraft images, Quad City Challenger 1 ultralight plane photographs, Ultralight News newsmagazine.

Quad City Challenger pictures, images of the Quad City Challenger ultralight, experimental, lightsport aircraft.

Sail sets, wing sets, wing cover for ultralight and light sport aircraft.

Flight training for ultralight and light sport aircraft.

Windsocks, portable windsocks, replacement windsocks.

Throttle cables for Rotax, Hirth, Kawasaki engines used on ultralight and light sport aircraft.

Quad City Challenger single place part 103 legal ultralight aircraft specifications and performance.

Wingspan 31.5'
Length 18.5'
Height 6'
Wing Area 142 sq. ft.
Engine Rotax 477, 42 HP
Empty Weight 254 lbs.
Useful Load 265 lbs.
Ultimate Load Factor +6, -4
Build Time  (1) 40-60 hours
Field Assembly Time 20 minutes
Airframe Type Aluminum Tube
Standard Covering Sailcloth and Dacron
Performance:

Challenger Ultralight

VNE 100 mph
Top Level Speed 63-90 mph
Cruise Speed 55-75 mph
Stall Speed  25 mph
Climb Rate  700-1200 fpm
Take Off Roll  100-200'
Fuel Burn, Cruise 2.2 gph

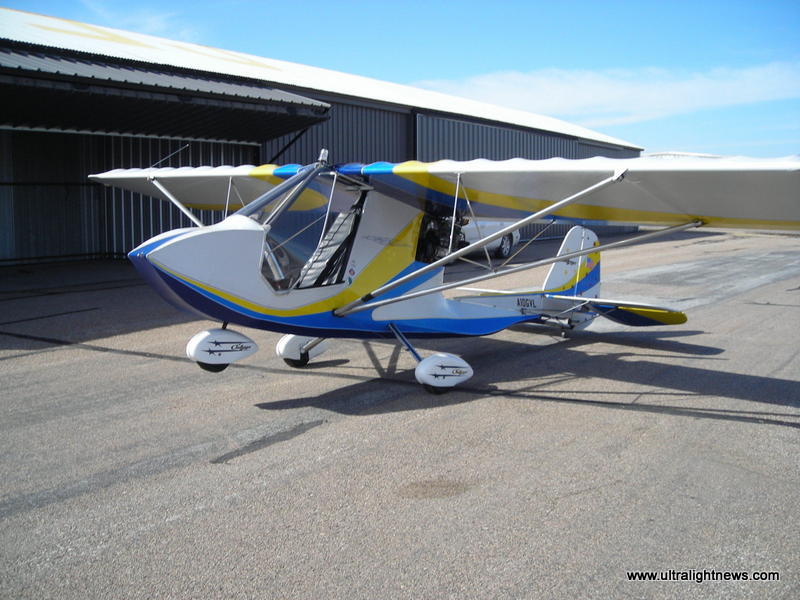

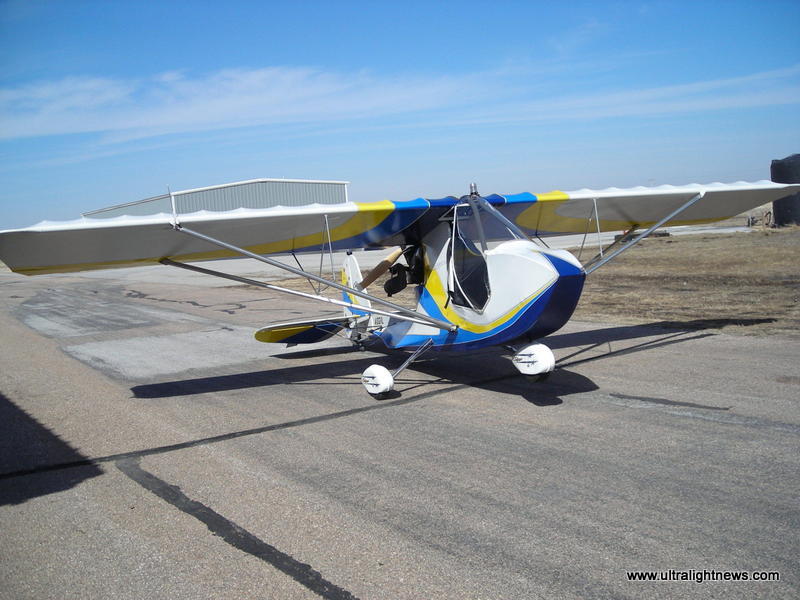

Quad City Challenger single place ultralight aircraft.
Quad City Challenger
Ultralight Aircraft
Quad City Challenger 1 experimental aircraft
Quad City Challenger
Experimental Aircraft

To view the pictures, images of the  Quad City Challenger click on the smaller images and they will enlarge. To return to the index page for the Quad City Challenger click on  Quad City Challenger Index link, to view video of the Quad City Challenger click on the Video link, to return to the Main Index click on the UltralightNews link.
