Affordaplane
ultralight aircraft pictures, Affordaplane ultra lite aircraft
images, Affordaplane ultralight plane photographs,
Ultralight News newsmagazine.
|
Single place Part 103 ultralights in the United States are defined as single
place ultralight aircraft that weigh 254 lbs or less, have a stall speed
not more than 24 knots, a top
speed of 55 knots, and carry no more than 5 gallons of fuel. To fly a
legal Part 103
ultralight aircraft in the United States the pilot does not require a
pilot license.
Single place aircraft weighing more than 254 lbs. in the U.S. require a
pilots license and must be built as experimental, amateur built,
homebuilt aircraft. These include weight shift aircraft, more commonly
known as trikes, powered parachutes, and powered para-gliders.
Single place ultralights in Canada can weigh up to 1200 lbs. and an
ultralight pilots license is required to fly them.
|
|
|
|
|
|
|
|

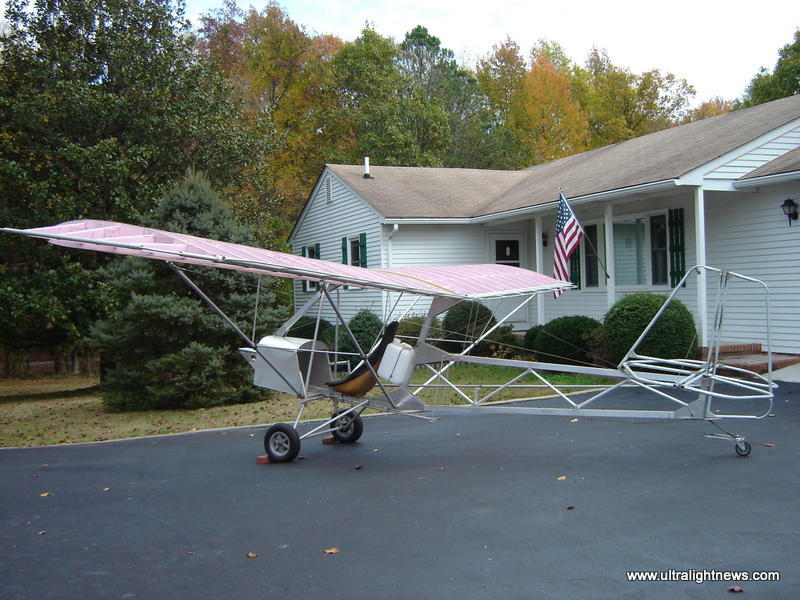

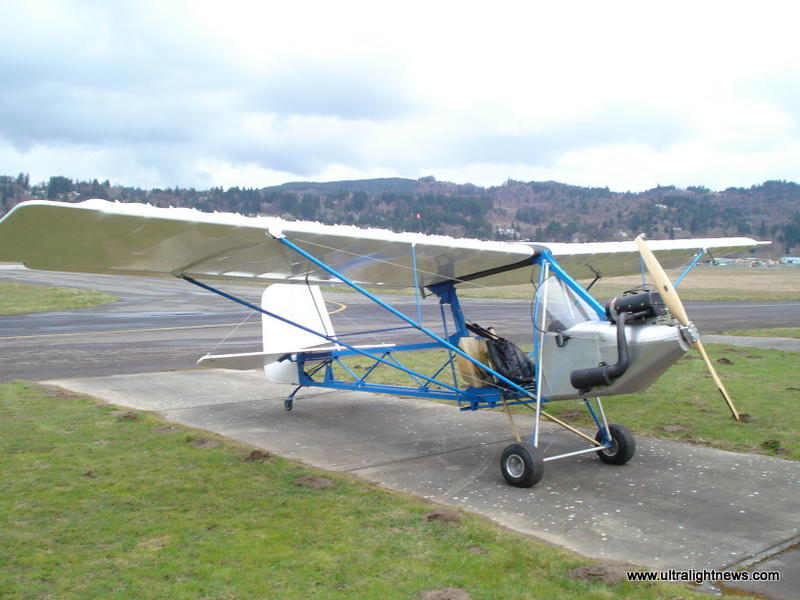

Affordaplane pictures, images of the
Affordaplane ultralight, experimental, lightsport aircraft.
|
 |
Affordaplane pictures, images of the
Affordaplane ultralight, experimental, lightsport aircraft.
|
|
|
| Affordaplane aircraft specifications. |
|
Wing Span |
27.5 ft. |
|
Wing Area |
117 sq. ft. |
|
Length |
17.3" ft. |
|
Max Gross Wt |
540 lbs. |
|
Empty Wt |
254 lbs. |
|
Payload (full fuel) |
505 lbs. |
|
Fuel Capacity |
5 gal. |
|
Seats |
1 |
|
Affordaplane aircraft
performance specifications. |
|
Engine |
35 to 40 HP |
|
Range |
110 sm. |
|
Takeoff Dist |
200 ft. |
|
Landing Dist |
200 ft. |
|
VNE |
85 mph. |
|
Cruise |
60 / 65 mph. |
|
Climb Rate |
500/700 fpm. |
|
Stall |
27 mph. |
|
Construction
|
Est. Bldg. Time 100 hrs. |
|
Affordaplane
Ultralight Aircraft |
|
Affordaplane
Experimental Aircraft |
|
Affordaplane
Amateur
Built Aircraft |
|
|
|
|
To view the
pictures, images of the Affordaplane click on the smaller
images and they will enlarge. To return to the index page for the Affordaplane click on Affordaplane Index link, to view
video of the Affordaplane click on the Video link, to
return to the Main Index click on the UltralightNews link. |
|
|
|
|
|
|
|
