Challenger Ultralight Fuel System

Rotax and Hirth engines use the same carburetor. On early model engines, carbs used a system which connected their two floats together, and had a small weeper hole in the bottom of the float bowl. This lead to the carburetor always dripping fuel out of the weeper hole at idle. It is recommended the this older style of carburetor be updated to the new model which uses two separate floats and has eliminated the weeper hole.

Many two place Challengers use a dual carburetor setup. When supplied from Rotax the engine is set up for use in an upright engine application (spark plugs facing up.) When used in an inverted installation, like on the Challenger, it is recommended that the two carburetor intake manifolds be turned over. Proper installation should have the carburetors at an upward angle.

All dual carburetor engines should use a DUAL FUEL PUMP, not a single fuel pump with a "T". On the 503 Rotax SINGLE carburetor engine Rotax is now supplying the engines with a DUAL PUMP. The two output lines run into a "T" with the one line then running to the single carburetor.

The fuel pump should be mounted ABOVE the impulse hole in the engine with the impulse fitting on the pump facing DOWN. The pump should be rubber mounted, away from heat and located not more than 12 inches from the impulse outlet on the engine. The line used to supply vacuum to the pump should be of a very thick wall so as not to collapse, and all lines should be clamped.

On early model Challengers the carburetor was reported to turn in flight. Later model engines are supplied with knurled intake manifolds and carburetors which prevent this from happening.

Another update has the two separate vent holes found on the sides of the carbs being replaced by one line with vent holes in the bottom. This prevents improper fuel to air mixture in the carburetor.

In Canada many Challengers are using engines meant for use in snowmobiles. WARNING: Rotax snowmobile engines are different from those built for aircraft use, and should not be used on aircraft!

Fuel pumps supplied for snowmobile application SHOULD NOT BE USED ON AIRCRAFT. The fuel pump supplied by Rotax, FOR AIRCRAFT USE, has a small hole in the impulse elbow of the pump.

This prevents fuel being caught between the pump diaphragm and fuel pump body, which could cause pump failure. Also note that this elbow on the pump should be facing down, thus allowing fuel entering between the diaphragm and body to drain out of the cavity.

Also check out Troubleshooting the Rotax engine series vol 1

Also check out Troubleshooting the Rotax engine series vol 2

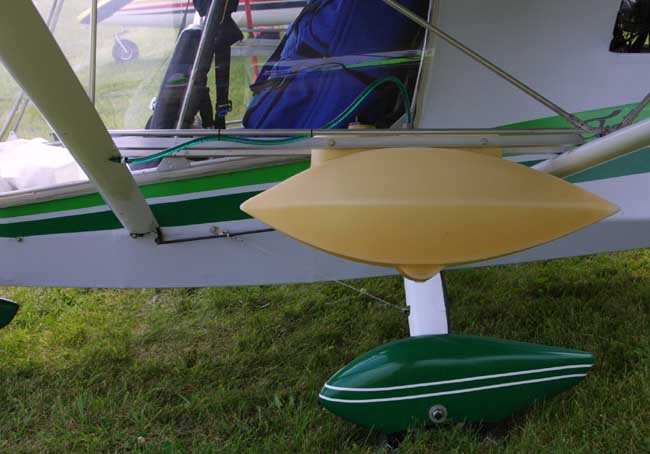

Long Range auxilary fuel tanks.
