Empty Weight: |
282 lbs. |
| Gross Weight: |
650 lbs. |
| Wing Span: |
28.10 ft. |
| Wing Area: |
135 sq. ft. |
| Engine:
|
447 Rotax |
| Cruise Speed: |
55 m.p.h. |
| Stall Speed: |
26 m.p.h. |
| VNE: |
75 m.p.h. |
| Construction: |
Aluminum
tube/fabric |
| Building time: |
175 Hrs. |

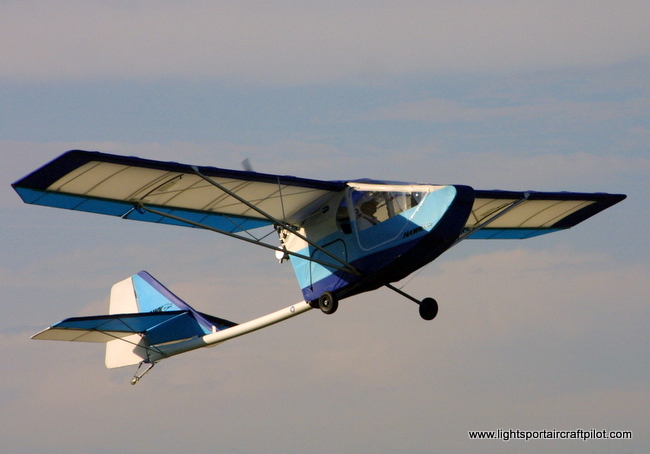

The CGS Hawk has been in production
since 1982, with the Hawk Arrow making it's debut in 1989. It is
available in either a tricycle gear or taildragger.
It features aluminum rivet and bolt together
construction covered in pre-sewn dacron sail cloth. Standard
features include 16 inch wheels, curved overhead and windshield with
full enclosure, should harness pilot restraint, and streamlined
struts.
Options include the Hirth 2703 or 2706 the Rotax 503/582, electric
start, folding wings, brakes, trim tab, larger fuel tank, wheel
pants ballistic parachute, instruments, and floats.
The kit is also available in fast build kit
form or ready to fly.
The Hawk has undergone thousands of hours of engineering and
testing and a complete structural analysis has been per performed,
as well as load and fatigue testing.
For more information contact
CGS Aviation
PO Box 470635 Broadview Heights
OH 44147
216-632- 1424 |
