Victor 2 plus
Schedule consumption thrusting curve, engine "Victor 2 Plus" matriculation number S1 27

Type "C" reduction, ratio 1/2.76
Double blades pushing propeller (made on wood), 184x119 GT
RPM.. Propeller turns .. Kg. of thrusting..
2200 797 30
3125 1132 72
4075 1476 96
4250 1540 106
4435 1607 116
4700 1703 128
5050 1730 149
5350 1938 170
5800 2120 190
5900 2137 210
6000 2174 220
6100 2210 230
6200 2246 240
Testing conditions : T 2° C - P 1048 Mb UR 46%
Locality Torre Maina 18/01/2001

Altitude (S.L.M.) 300 mt.

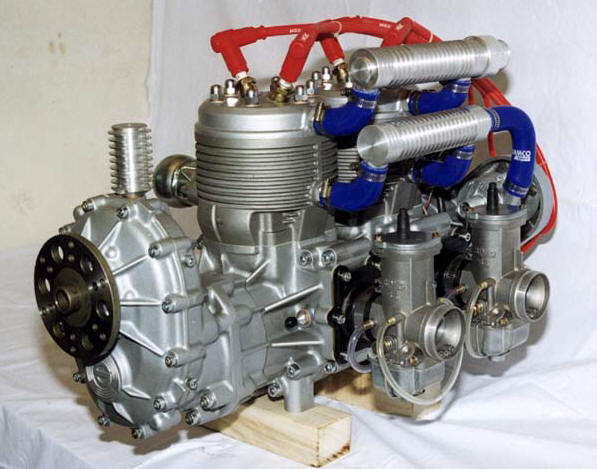

Engine: Victor 2 plus axc 80x76x2 764 cc rdc 9,5/1
Lamellar induction, double carburettor (Bing 36 mm.), aluminium cylinders Nicasil ceramic filling.

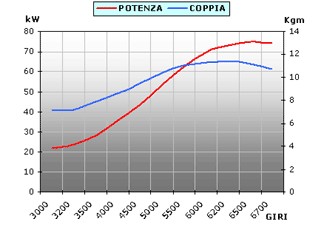

Exhaust systems with indipendent resonance, maximum power 102 HP at 6200 rpm, couple at power speed 11,80 Kgm.
Type "C" reduction with elastic joint/vibration damper, ratio available 1/2,54, 1/2,76, 1/3,47, 1/4.
Type "C" reduction and electric start mass-produced.
Flying consumption at 5200 rpm, 8 liters/hour.
Lubrication: premix 2,5 with leaded fuel, 3% with unleaded fuel (SP).
Total weight with accessories, radiator, cooling liquid and propeller 52 Kg.
For more information contact:

Speedwing Aircraft Inc
2500 CH. De La Presqu'ile
L'Assomption Quebec
Canada J5W 3P3
450-589-1950
