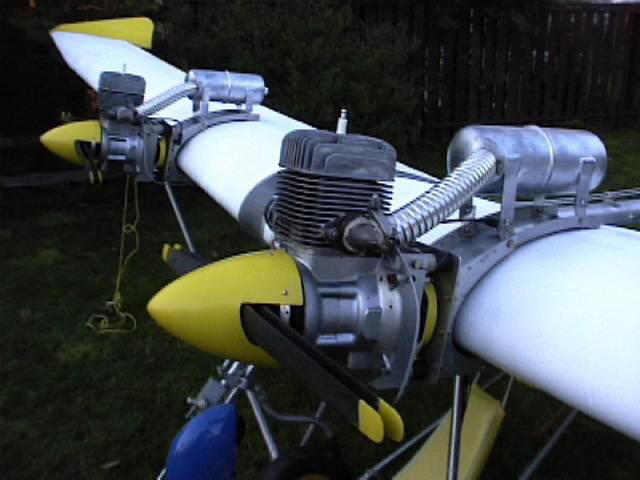

Lazair aircraft engine, Rotax 185 Lazair ultralight engine parts.
|
|
|
Everyone knows a 'good' landing is one from which you can walk away.
But a
'great landing is one after which you can use the airplane again. |
|
|
|
|
|
|
|
Click here for this months specials! |
|
|
 |
|
|
 |
Lazair Rotax 185 aircraft engine parts break down.
|
|
Rotax 185
Parts breakdown in PDF format
you will require Abode Acrobat reader to view these pages!
You can obtain it FREE at
http://www.adobe.com/prodindex/acrobat/readstep.html
| BASE GASKET
|
230 068
|
|
| STUDS M6 X 21.5
|
240 570
|
|
| SLOTTED HEAD SCREW |
241
286
|
|
| SCREW M4x23 |
241 355 |
|
| NUT M12 x 1.0 |
242 515 |
|
| WASHER 4.3 |
244 072
|
|
| DOWEL TUBE |
249 760
|
|
| IGNITION COIL |
264 335 |
|
| IGNITION CABLE (PER METER)
|
265
749 |
|
| PROTECTION CAP |
676 120 |
|
| SEALING RING |
850 270
|
|
| FASTON CONNECTOR |
864 550
|
|
| MAGNETO HUB |
866
730 |
|
| BANANA PLUG BLACK |
866 740 |
|
|
CYLINDER HEAD |
913
672 |
|
| CYLINDER HEAD |
913 675 |
|
| RECTANGULAR RING 62 DIA .2MM HIGH
|
915
240 |
|
| RECT RING 1ST OVER 62.5 DIA .2MM H.
|
915
241 |
|
| GASKET, CYLINDER HEAD |
930
045 |
|
|
OIL SEAL BASL 20-35-7 |
930
390
|
|
|
CRANKCASE GASKET |
930 880 |
|
|
ISOLATING FLANGE |
930 915
|
|
|
NEEDLE CAGE |
932 904 |
|
|
EXHAUST STUD M8 x 19.5 |
EXHAUST
STUD M8 x 19.5 |
|
|
STUD M6 x 15 |
940 655 |
|
|
LOCKING NUT M6 |
942 040
|
|
|
HEX NUT M 14 X 1.5 |
942 200 |
|
|
HEX NUT, M12 x 1 |
942 522
|
|
|
SHIM |
944 460 |
|
|
SHIM 20,5/30/0,3 |
944 461
|
|
|
SHIM 0,4MM |
944 463 |
|
|
SHIM 0,8MM |
944 464
|
|
| SHIM 20,5/30/1 |
944 466 |
|
| LOCK WASHER 12, MAGNETO SIDE
|
945
754 |
|
| LOCK WASHER 14 |
945 755 |
|
| LOCK WASHER A4 |
945 758 |
|
| DISTANCE SLEEVE |
947 685 |
|
| EXHAUST GASKET |
950 261 |
|
| RUBBER GROMMET |
960 290
|
|
| PROTECTION CAP |
960 360 |
|
| REDUCTION SLEEVE |
960 480 |
|
| PROTECTION SLEEVE |
960 710 |
|
| SHORTING CABLE |
964 275 |
|
| PULLER |
976 235
|
|
| CRANKSHAFT ASSY. |
983 694 |
|
| PISTON ASSY. 62mm |
994 045 |
|
| PISTON ASSY 1st OVER 62.45
|
994
046 |
|
|
|
|
|
