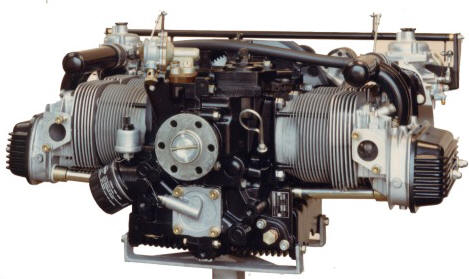

Limbach L2400 EB
Four cylinder,
horizontally opposed air cooled engine, with single magneto ignition,
wet sump pressure lubrication |
| Maximum HP(5 min) |
87 HP / 64 kW / 3200 rpm |
| Continous HP |
84.5 HP / 62 kW / 3000 rpm |
| Bore |
97 mm / 3.82 inch |
| Stroke |
82 mm / 3.23 inch |
| Displacement |
2424 cm³ / 147.91 cub.in |
| Compression ratio |
8.5:1 |
| Magneto |
Slick 4330 |
| Harness |
Slick High Temperature |
| Spark plugs |
Eyquem A 755 |
| Electrode spacing |
0.4 mm |
| Firing Order |
1-3-2-4 |
| Firing point |
30° BTDC |
| Carburator |
2*ZENITH 150 CD-3 |
| Fuel min. octane |
98 RON (Unleaded) / AVGAS
100 LL |
| Air cleaner |
2*Limbach |
| Mechanical fuel pump |
Limbach |
| Starter with solenoid |
12 V - 1.4 kW |
| Generator |
14 V - 33 A or 14 V - 55 A |
| Oil pressure |
max. 7 bar; min 1 bar at
2500 rpm |
| Oil temperature |
max. 120 ºC; min 50 °C |
| Oil capacity |
3.5 ltrs |
| Cylinder head temperature |
max. 250°C |
| Tachometer drive |
mechanical |
| Propeller drive |
direct, anti-clockwise |
| Propeller hub |
EB 1 for var. pitch
EB 3 for fixed pitch (SAE No.1) |
| Dry weight approx. |
82 kg |
| Fuel consumption |
should be individually
established during flight tests
however the average fuel consumption is approx.: 14 ltrs/hr |
| LBA Type Certification No.
|
4607 (JAR 22-H) |
|
Limbach Flugmotoren GmbH & Co. KG
Kotthausener Str. 5
53639 Königswinter
Tel.: ++49 - (0)2244 - 9201-0
Fax: ++49 - (0)2244 - 9201-30 |
|
