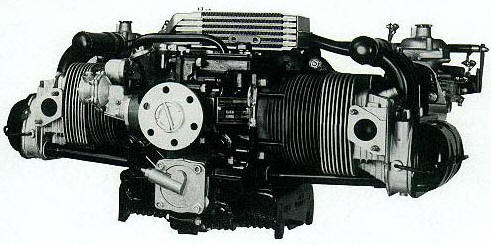

Limbach L 2000 EB1
Four cylinder,
horizontally opposed air cooled engine, with single magneto ignition,
wet sump pressure lubrication |
| Maximum HP
(5min) |
80
HP / 3400 rpm |
| Continous HP |
72
HP / 3000 rpm |
| Bore |
90
mm / 3.54 inch |
| Stroke |
78.4 mm / 3.09 inch |
| Displacement |
1994 cm³ / 121.68 cub.in |
| Compression
ratio |
8.4:1 |
| Magneto |
Slick 4330 |
| Harness |
Slick High
Temperature |
| Spark plugs |
Eyquem
A 755 |
| Electrode
spacing |
0.4
mm |
| Firing Order |
1-2-3-4 |
| Firing point |
30°
BTDC |
| Carburator |
2*Zenith 150 CD-3 |
| Fuel min.
octane |
98
RON (Unleaded) / AVGAS 100 LL |
| Air cleaner |
2*Limbach |
| Mechanical fuel
pump |
Limbach |
| Starter with
solenoid |
12
V / 1.4 kW |
| Generator |
14
V - 33 A or 14 V - 55 A |
| Oil pressure |
max. 4 bar; min 1 bar at 2500 rpm |
| Oil temperature |
max. 120 ºC; min 50 °C |
| Oil capacity |
2.5
ltrs |
| Cylinder head
temperature |
max. 250 °C |
| Tachometer
drive |
mechanical |
| Propeller drive |
direct, anti-clockwise |
| Propeller hub |
EB1
for variable pitch |
| Dry weight
approx. |
72,5 kg |
| Fuel
consumption |
should be individually established during flight tests
however the average fuel consumption is approx.: 12 ltrs/hr |
| LBA Type
Certification No. |
4597 |
|
Limbach Flugmotoren GmbH & Co. KG
Kotthausener Str. 5
53639 Königswinter
Tel.: ++49 - (0)2244 - 9201-0
Fax: ++49 - (0)2244 - 9201-30 |
|
