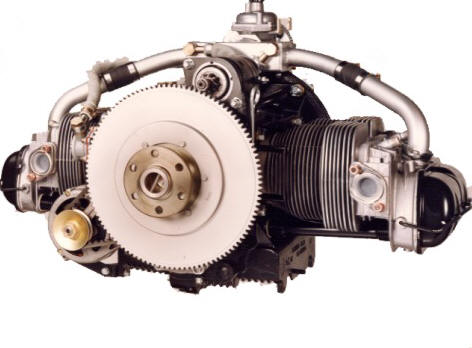

Limbach L 1700 EA
Four cylinder,
horizontally opposed air cooled engine, with single magneto ignition,
wet sump pressure lubrication |
| Maximum HP |
60
HP / 44 kW / 3600 rpm |
| Continous HP |
56
HP / 41 kW / 3300 rpm |
| Bore |
88
mm / 3.46 inch |
| Stroke |
69
mm / 2.71 inch |
| Displacement |
1680 cm³/ 102.52 cub.in |
| Compression
ratio |
8:1 |
| Magneto |
Slick 4330 |
| Harness |
Slick High
Temperature |
| Spark plugs |
Eyquem A 755 |
| Electrode
spacing |
0.4
mm |
| Firing Order |
1-3-2-4 |
| Firing point |
30°
BTDC |
| Carburator |
Zenith 150 CD-3 |
| Fuel min.
octane |
98
RON (Unleaded) / AVGAS 100 LL |
| Air cleaner |
Limbach |
| mechanical fuel
pump |
APG-Limbach |
| Starter |
12
V / 0,4 kW |
| Generator |
14
V - 28 A |
| Oil pressure |
max. 4 bar; min 1bar at 2500 rpm |
| Oil temperature |
max. 120 ºC; min 50 °C |
| Oil capacity |
2.5
ltrs |
| Cylinder head
temperature |
max. 250 °C |
| Tachometer
drive |
mechanical |
| Propeller drive |
direct, anti-clockwise |
| Propeller hub |
EA
1 for variable pitch
EA 2 for fixed pitch |
| Dry weight
approx. |
73
kg |
| Fuel
consumption |
should be individually established during flight tests
however the average fuel consumption is approx.: 10 ltrs/hr |
| LBA Type
Certification No. |
4582 (JAR 22 - H) |
|
Limbach Flugmotoren GmbH & Co. KG
Kotthausener Str. 5
53639 Königswinter
Tel.: ++49 - (0)2244 - 9201-0
Fax: ++49 - (0)2244 - 9201-30 |
|
