Limbach L 1700 E0, Limbach engines, Limbach aircraft engines, Limbach
68 HP aircraft engine.
|
|
|
|
|
|
|
 |
|
|

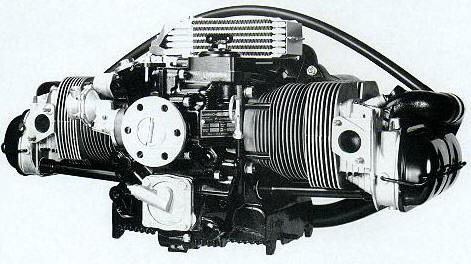

Limbach
L 1700 E0
Four cylinder,
horizontally opposed air cooled engine, with single magneto ignition,
wet sump pressure lubrication |
|
 |
| Maximum HP
(5min) |
68 HP / 56 kW /
3600 rpm |
| Continous HP |
60 HP / 44 kW /
3200 rpm |
| Bore |
88 mm / 3.46
inch |
| Stroke |
69 mm / 2.71
inch |
| Displacement |
1680 cm³ /
102.52 cub.in |
| Compression
ratio |
8:1 |
| Magneto |
Slick 4330 |
| Harness |
Slick High Temperature |
| Spark plugs |
Eyquem A 755 |
| Electrode
spacing |
0.4 mm |
| Firing Order |
1-3-2-4 |
| Firing point |
30° BTDC |
| Carburator |
Zenith 150 CD-3 |
| Fuel min.
octane |
98 RON
(Unleaded) / AVGAS 100 LL |
| Air cleaner |
Limbach |
| Mechanical fuel
pump |
APG-Limbach |
| Starter |
12 V / 1.4 kW |
| Generator |
14 V - 33 A
optional |
| Oil pressure |
max. 4 bar; min
1 bar at 2500 rpm |
| Oil temperature |
max. 120 ºC;
min 50 °C |
| Oil capacity |
2.5 ltrs |
| Cylinder head
temperature |
max. 250 °C |
| Tachometer
drive |
mechanical |
| Propeller drive |
direct,
anti-clockwise |
| Propeller hub |
E01 for
variable pitch
E0 2 for fixed pitch |
| Dry weight
approx. |
73 kg |
| Fuel
consumption |
should be
individually established during flight tests
however the average fuel consumption is approx.: 10 ltrs/hr |
| LBA Type
Certification No. |
4582 (JAR 22-H) |
|
Limbach Flugmotoren GmbH & Co. KG
Kotthausener Str. 5
53639 Königswinter
Tel.: ++49 - (0)2244 - 9201-0
Fax: ++49 - (0)2244 - 9201-30
|
|
