Hexadyne Hexatron two cylinder 60 horsepower 4 stroke aircraft engine

Looking for an engine to power your Kitfox, Pietenpol or similar light aircraft? The people at Hexadyne Aviation think they have just the answer for you. The Hexadyne P60 is a new, clean-sheet design that is just coming to market, and the manufacturer is based here in Salt Lake City.

Hexadyne is a division of Hexatron Engineering Company, Inc., an aerospace engineering and manufacturing firm that has been in operation since 1983. Hexatron builds FAA certified folding crew seats for commercial airliners, as well as replacement hub and brake components for C-130 and F-16 aircraft that are supplied to Hill Air Force base maintenance facilities.

Cy Williams, President and Chief Engineer of Hexadyne, recently gave Shane Rosanova and myself a tour of the 12,000 sq. ft. manufacturing plant on North Redwood Rd. Cy explained that Hexatron originally got involved in experimental aviation when they became distributors for the now-defunct Merlin aircraft line five years ago. Cy soon realized that what was really needed was a high-quality, reliable and lightweight four stroke engine in the 60 horsepower range.

That realization was the genesis of a three-year, million-dollar research and development effort that has resulted in the design of the Hexadyne P60. The P60 is a horizontally opposed, four-stroke, four valve per cylinder, aircooled, two cylinder engine that displaces 800 cc’s and produces 60 horsepower at 5750 RPM. The cylinder heads have been designed with extra emphasis on cooling, with plenty of fin area and large air passages through the center of the head.

The cylinders are directly across from each other, a design feature to reduce the rocking vibration that results when cylinders are offset. Hexadyne was able to do this by using one connecting rod for one cylinder and two smaller rods on their own crank journals for the other side cylinder. The crankshaft, a beefy steel forging, rides in a vertically-split, two piece aluminum crankcase that incorporates the cylinders.

A Nikasil liner in each cylinder provides the wear surface for the forged aluminum pistons to ride in. Lubrication is provided by a two-stage dry sump oil system. Camshafts and oil pumps are gear-driven off the rear of the crankshaft, where the integral 45-amp alternator is mounted. The dual throttle body fuel injection and ignition are scheduled by an engine management computer, which provides single lever power management.

The front of the engine contains an integral 2.5 to 1 spur-gear reduction gearbox, with thrust bearings that can handle tractor or pusher propeller thrust loads. The engine redline is 5750 RPM, which gives 2300 RPM at the prop. Engine mounting is handled by a rear, four point dyna-focal ring. After pointing out the design features of the engine, Cy introduced us over to one of his engine techs, named (appropriately enough!) Curtiss Wright. Curtiss led us to the back of the shop, where a P60 was mounted on a test stand.

He started it up, and did runs up and down the engine RPM range, with the three-blade Warp Drive propeller creating quite a breeze. This particular engine had already amassed more than 800 hours of running time, and Cy said they expect an initial TBO of 1000 hours. The engine is expected to be available by this summer, and Hexadyne already has deposits on 25 engines. Aircraft Spruce and Specialty will be carrying it in their next catalog. The engines will each get a two hour test stand run before being shipped, and will be supplied with an installation, maintenance and overhaul manual.

The engine will be warranted for two years against defective parts. Initial target price is $8,800 dollars. Compact size, light-weight (98 lbs), four stroke reliability and high quality together in one package make the Hexadyne P60 an attractive option for light aircraft builders. Hexadyne Aviation might just have the next “big” little engine right here in Salt Lake!

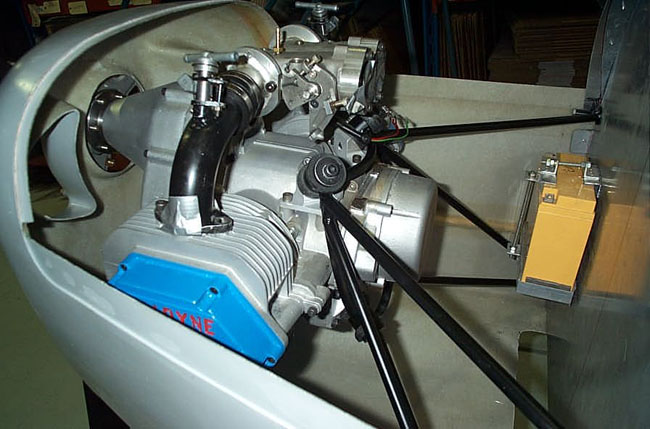

The Hexadyne 2-cylinder engine and prop make a compact firewall-forward package. They are being marketed for ultralights and light aircraft that will fit under the new sport pilot FAR category.

Courtesy of http://www.eaa23.org/News/nl-may01.pdf
