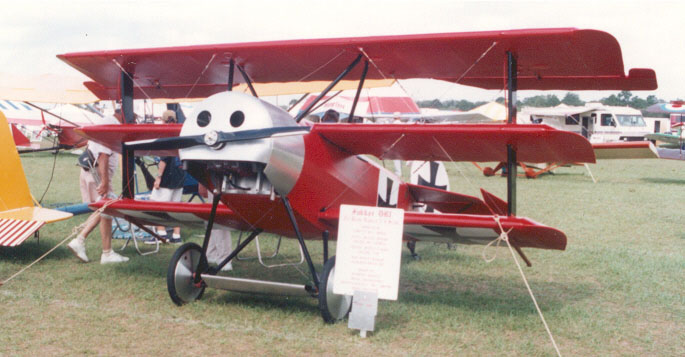

Fokker DR-1 Tri-plane by Robert Baslee at EAA's Airventure air show.

 Ultralight Aircraft News
Covering the World of Ultralight Aviation



Airfield By Appt Only

Click here for Rotax Aircraft
Engine Information

The L'il Buzzard, L'il Hustler, and L'il Hustler SS two place ultralight trainers and light sport aircraft.

Top 10 reasons to consider a
 L'il Buzzard!


Kids: It is so hot in some places that the people there have to live in other places.

 Click here for this months specials!

Your new AdDesigner.com ad!

When was the last time you did maintenance on your K & N Airfilter? Is you filter safety wired? Click here to see how to clean and safety wire your airfilter!


Fokker DR-1 Tri-plane

There are several kit manufactures building replica fighters in both the ultralight and experimental category. One thing that is common in all of the kits that is the quality of the finished product.

This has to say a lot for the kit manufacturer when each of the craft his customers come to shows such as Sun N Fun and Oshkosh with are so beautifully finished.

Robert Baslee of Aerodrome Aeroplanes had several of his designs on display - down in the "replica section," including a complete fuselage and wings from his 3/4 scale Fokker DR 1 triplane.

When you look at the building times for each kit it is very easy to see why the craft can go together in as little as 400 hours total time - just over an hour a day for a year - or winters project working 4 or 5 hours a night.

The DR-1 is available in a complete kit or in 12 sub kits:

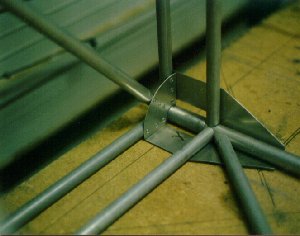

Kit #1 Rudder:Includes Materials to construct rudder spar, rudder bow, ribs, gussets, cjoint1.jpg (15819 bytes)ontrol horn, wooden dowel rods, hinges, rivets, AN hardware, and plans. The rudder kit is introduced as the first assembly designed to introduce a new builder to the method of construction as well as familiarize him with the plans. Approximate construction time: 6 hrs

Kit #2 Fuselage:Consists of materials to construct fuselage ladder truss, gussets, inner sleeves, machine parts, rivets, AN hardware, hinges & plans. Fuselage must be constructed prior to proceeding with the other kits. Approximate construction time: 48 hrs

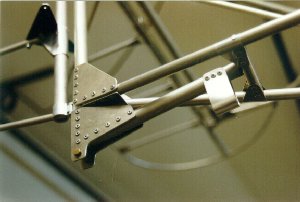

Kit #3 Horizontal Stabilizer & Elevator: Consists of Materials to construct spars, Elevator bow, horizontal frame, ribs, gussets, rivets, wooden dowel rods, hinges, inner sleeves, AN hardware and plans. Approximate construction time 9 hrs.tailpost.jpg (13847 bytes)

Kit #4 Landing Gear: Consists of materials required to construct gear legs, gussets, axle, main wheels, bearings, machine parts, bracing cables, nico press swedges, tangs, AN hardware, tail wheel, bunge cords and plans. Approximate construction time: 14 hrs.

Kit #5 Wing:consists of materials to construct spars, comp. struts, inner sleeves, machined parts, ribs, tip bow, hinges, drag anU drag cables, nico press swedges, thimbles, tangs, gussets, rivets AN hardware, wooden dowel rods & plans. Approximate construction time: 80 hrs.

Kit #6 Cabanes & Lift struts Consists of materials to construct lift struts, cabanes, all machined lift forks, ovalized tubing, gussets, AN hardware, saddles, cable, nico press swedges, thimbles, tangs, plans. Approximate construction time: 26 hrs.

Kit #7 Control Systems:Consists of materials to construct torque tube ~mbly, elevator push pull tube, rudder als, cables, nico press swedges, thimbles, ~s, machined parts, uniflex cables, AN Iware, sheet metal, ball bearing rod ends, & plans Approximate construction 18 hrs.

Kit #8 Firewall & formers isists of materials to construct firewall, et metal for seat, tubing for form ers, )den dowel rods, rivets, front deck, rument panel, turtle deck former. ) approximate construction time: 16 hrs.

Kit#9 Covering Supplies:Consists of materials required to cover raft, ceconite poly tak, poly brush, poly ~y, reinforcing tape, rivets, finishing tapes. )roxi mate time 100 hrs.

Kit#10 Fuel Tank: tank comes welded with supplies to all sight gauge.

#11 Engine Mount:Engine mount comes welded after airframe been completed, covered and painted. Ider must supply accurate weight of rame for engine mount construction.

#12 Cowling:consists of spun aluminum nose bowl & ~et metal for wrap around.

The Airdrome Aeroplanes 3/4 scale Fokker DR-1 can be constructed using normal hand tools - consisting of hacksaw, hand drill, file, privet gun, wrenches, & hand nico press )l. Area required for construction should be proximately the size of a single car garage.

For more information contact:
Robert Baslee
929 WN RD 1571 HOLDEN MO. 64040
(816) 230-8585
